   Airport Lighting Cables FL2XCY



Applications

These cables are used as airfield lighting equipment primary cables for the series circuit connecting the Constant Current Regulators and the isolating transformers, and between the isolating transformers.

Standards

ENV 50213
IEC 50602-2

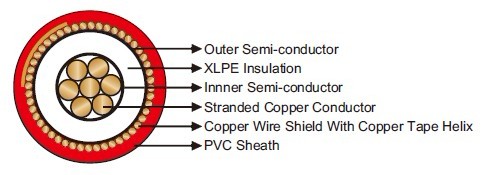

Construction

Conductor: Stranded bare copper conductor.
Inner Semi-Conductor: Extruded semi-conducting compound.
Insulation: XLPE.
Outer Semi-Conductor: Extruded semi-conducting compound.
Shield: Concentric layer of bare copper wires, counter helix of a copper tape.
Sheath: PVC.

Technical Data

Rated Voltage Uo/U (Um)	6/10kV
Maximum Conductor Temperature	90℃
Short Circuit Temperature	250℃
Operating Temperatures	-40℃~+90℃
Minimum Bending Radius	15×OD
Flame Retardant	Yes
Impacted Resistant	Yes
Weather Resistant	Yes
Oil Resistant	Yes

Dimensions and Weight

Construction	Nominal Insulation Thickness	Nominal Shield Cross Section	Nominal Sheath Thickness	Nominal Overall Diameter	Nominal Weight
No. ×mm²	mm	mm²	mm	mm	kg/km
1×6	3.5	6	1.4	15.6	420
