   Secondary Circuit Cables FLGG



Applications

These cables are used as airfield lighting cable for secondary electrical circuits.

Standards

IEC 60502-2

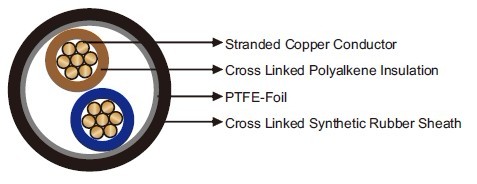

Construction

Conductor: Stranded tinned copper conductor.
Insulation: Cross linked polyalkene.
Separator: PTFE-Foil.
Outer Sheath: Cross linked synthetic rubber compound

Technical Data

Rated Voltage Uo/U (Um)	500V
Maximum Conductor Temperature	90℃
Short Circuit Temperature	250℃
Operating Temperatures	-20℃~+90℃
Minimum Bending Radius	5×OD
Halogen Free	Yes
No Toxicity & Corrosivity	Yes
Low Smoke	Yes
Flame Retardant	Yes

Dimensions and Weight

Construction	Nominal Sheath Thickness	Nominal Sheath Thickness	Maximum Overall Diameter	Nominal Weight
No. ×mm²	mm	mm	mm	kg/km
2×4	0.5	1.1	9.8	167
