Airport Cable |  |
|
|
|||
 |
|
FLYCY
Applications
These cables are used as airfield lighting equipment primary cables for the series circuit connecting the Constant Current Regulators and the isolating transformers, and between the isolating transformers.
Standards
ENV 50213
IEC 50602-2
VDE 0271

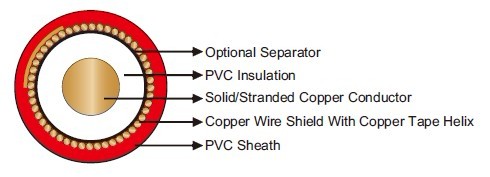

Construction
Conductor: Solid or stranded bare copper conductor.
Insulation: PVC.
Optional Separator: Separator tape.
Shield: Concentric layer of bare copper wires, counter helix of a copper tape.
Sheath: PVC.
Technical Data
Rated Voltage Uo/U (Um) |
1/2kV, 1.5/3kV, 2.5/5kV, 3/6kV, 5/10kV |
Maximum Conductor Temperature |
90℃ |
Short Circuit Temperature |
250℃ |
Operating Temperatures |
-40℃~+90℃ |
Minimum Bending Radius |
15×OD |
Flame Retardant |
Yes |
Impacted Resistant |
Yes |
Weather Resistant |
Yes |
Dimensions and Weight
1/2kV
Construction |
Nominal Insulation |
Nominal Shield |
Nominal Sheath |
Nominal Overall |
Nominal Weight |
No. ×mm² |
mm |
mm² |
mm |
mm |
kg/km |
1×6 |
1.5 |
2.5 |
1.4 |
10.0 |
170 |
1.5/3kV
Construction |
Nominal Insulation |
Nominal Screen |
Nominal Sheath |
Nominal Overall |
Nominal Weight |
No. ×mm² |
mm |
mm² |
mm |
mm |
kg/km |
1×6 |
2.8 |
2.5 |
1.4 |
12.5 |
240 |
2.5/5kV
Construction |
Nominal Insulation |
Nominal Shield |
Nominal Sheath |
Nominal Overall |
Nominal Weight |
No. ×mm² |
mm |
mm² |
mm |
mm |
kg/km |
1×6 |
3.0 |
4 |
1.4 |
13.0 |
250 |
3/6kV
Construction |
Nominal Insulation |
Nominal Shield |
Nominal Sheath |
Nominal Overall |
Nominal Weight |
No. ×mm² |
mm |
mm² |
mm |
mm |
kg/km |
1×6 |
3.0 |
4 |
1.4 |
13.0 |
250 |
1×16 |
3.0 |
6 |
1.4 |
15.0 |
465 |
5/10kV
Construction |
Nominal Insulation |
Nominal Screen |
Nominal Sheath |
Nominal Overall |
Nominal Weight |
No. ×mm² |
mm |
mm² |
mm |
mm |
kg/km |
1×6 |
3.8 |
6 |
1.4 |
16.5 |
360 |
1×10 |
3.8 |
6 |
1.4 |
17.0 |
390 |
