Airport Cable |  |
|
|
|||
 |
|
Secondary Circuit Cables H07RN-F
Applications
These cables are used for connection between transformers and Airfield Lighting Equipment.
Standards
NF C 32-102-4
HD 22-4

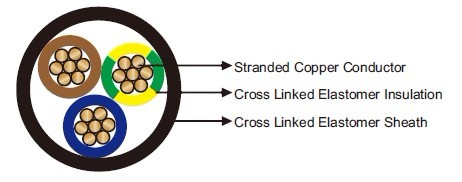

Construction
Conductor: Stranded bare copper.
Insulation: Special cross linked elastomer.
Sheath: Cross linked oil resistant elastomer.
Technical Data
Rated Voltage Uo/U (Um) |
450/750V |
Maximum Conductor Temperature |
85℃ |
Short Circuit Temperature |
200℃ |
Operating Temperatures |
-20℃~+85℃ |
Minimum Bending Radius |
static: 4×OD; dynamic: 8×OD |
| Impacted Resistant | Yes |
Weather Resistant |
Yes |
| Oil Resistant | Yes |
Dimensions and Weight
Construction |
Nominal Insulation |
Nominal Sheath |
Minimum Overall |
Maximum Overall |
Nominal Weight |
No. ×mm² |
mm |
mm |
mm |
mm |
kg/km |
1×2.5 |
0.9 |
1.4 |
6.3 |
7.9 |
66 |
1×4 |
1.0 |
1.5 |
7.2 |
9.0 |
94 |
1×6 |
1.0 |
1.6 |
7.9 |
9.8 |
109 |
2×2.5 |
0.9 |
1.7 |
10.2 |
13.1 |
161 |
2×4 |
1.0 |
1.8 |
11.8 |
15.0 |
238 |
2×6 |
1.0 |
2.0 |
13.1 |
17.0 |
279 |
3×2.5 |
0.9 |
1.8 |
10.9 |
14.0 |
195 |
3×4 |
1.0 |
1.5 |
12.7 |
16.2 |
290 |
3×6 |
1.0 |
2.0 |
14.1 |
18.0 |
346 |
