Secondary Circuit Cables LYST
Applications
These cables are used for connection between Control Tower and Constant Current Regulators (CCRs), suitable for transmission of voice data up to 2,000 kHz.
Standards
NF C 32 070 C2

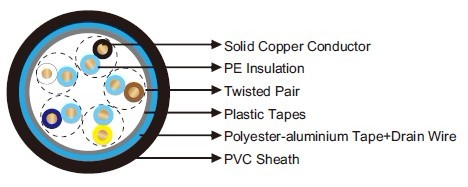

Construction
Conductor: Solid bare copper.
Insulation: PE.
Cable Element: Pairs.
Separator: One or more plastic tapes.
Shield: Polyester-aluminium tape with drain wire.
Sheath: PVC.
Technical Data
Rated Voltage Uo/U (Um) |
200V |
Maximum Conductor Temperature |
90℃ |
Short Circuit Temperature |
250℃ |
Operating Temperatures |
-15℃~+70℃ |
Minimum Bending Radius |
static: 6×OD; dynamic: 12×OD |
Lead Free |
Yes |
Dimensions and Weight
Construction |
AWG |
Nominal Overall Diameter |
Nominal Weight |
No. ×mm² |
- |
mm |
kg/km |
1×2×0.20 |
24 |
3.6 |
18 |
2×2×0.20 |
24 |
4.5 |
27 |
3×2×0.20 |
24 |
5.0 |
33 |
5×2×0.20 |
24 |
6.0 |
47 |
10×2×0.20 |
24 |
7.2 |
77 |
15×2×0.20 |
24 |
8.2 |
104 |
30×2×0.20 |
24 |
11.0 |
193 |
56×2×0.20 |
24 |
14.7 |
334 |
112×2×0.20 |
24 |
19.5 |
626 |
1×2×0.50 |
20 |
4.8 |
31 |
2×2×0.50 |
20 |
7.0 |
57 |
3×2×0.50 |
20 |
7.2 |
70 |
5×2×0.50 |
20 |
8.6 |
97 |
10×2×0.50 |
20 |
11.3 |
174 |
15×2×0.50 |
20 |
12.9 |
236 |
30×2×0.50 |
20 |
16.8 |
441 |
56×2×0.50 |
20 |
23.4 |
799 |
