Automotive Cable

AVSS

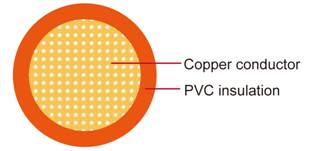

AVSS Automotive PVC insulated single-core cable is used for low voltage circuits in automobiles, vehicles and Motorcycles.

Conductor:

Cu-ETP1 bare according to JIS 3120

Insulation:

PVC

Standard Compliance:

JASO D 611-94

Operating temperature:–40 °C to +85 °C

	Conductor	Insulation	Cable
Nominal cross- section	No. and Dia. of Wires.	Diameter Max.	Electrical resistance at 20℃ Max.	thickness wall Nom.	Overall Diameter min.	Overall Diameter max.	Weight approx.
mm2	No./mm	mm	mΩ/m	mm	mm	mm	Kg/km
1 x 0.30	7/0.26	0.80	50.20	0.30	1.40	1.50	5
1 x 0.50	7/0.32	1.00	32.70	0.30	1.60	1.70	7
1 x 0.85	19/0.24	1.20	21.70	0.30	1.80	1.90	10
1 x 1.25	19/0.29	1.50	14.90	0.30	2.10	2.20	14
1 x 0.3f	19/0.16	0.80	48.80	0.30	1.40	1.50	5
1 x 0.5f	19/0.19	1.00	34.60	0.30	1.60	1.70	7
1 x 0.75f	19/0.23	1.20	23.60	0.30	1.80	1.90	10
1 x 1.25f	37/0.21	1.50	14.60	0.30	2.10	2.20	14
1 x 2f	37/0.26	1.80	9.50	0.40	2.60	2.70	22

The "f" in the nominal size column indicates a flexible conductor with a finer wire diameter.

Note: Other configurations, sizes, colors and length not specified herein areavailable upon request.
