Automotive Cable

Germany Standard

FL4G11Y

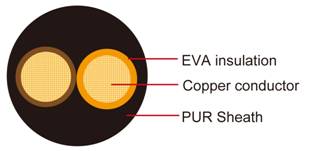

Automotive EVAinsulated ,PURsheathed multi-cores cable is used for ABS braking systems, wiring inside the engine compartment.

Conductor:

cu-ETP1 tinned according to DIN EN 13602

Insulation:

Ethylene vinyl acetate (EVA)

Sheath:

Polyurethane(PUR)

Standard Compliance:

ISO 6722 Calss C

Operating temperature:–40 °C to +125 °C

	Conductor			Insulation		Cable
Nominal Cross -section	No. and Dia.of Wires	Diameter max.	Electrical Resistanceat 20°Cmax.	Thickness Wallnom.	Diameter of Core	Sheath Thickness	Overall Diameter min.	Overall Diameter max.	Weight approx.
mm2	No./mm	mm	mΩ/m	mm	mm	mm	mm	mm	kg/km
2x 0.50	16/0.21	1.00	40.10	0.60	2.20	0.85	5.90	6.30	44
2x0.75	40/0.16	1.10	27.10	0.50	2.20	0.90	5.90	6.45	49
2x1.50	30/0.26	1.70	13.70	0.60	2.80	0.65	6.60	7.00	66
3x0.50	16/0.21	1.00	40.10	0.60	2.20	0.80	6.00	6.40	51
3x1.50	30/0.26	1.70	13.70	0.70	2.90	1.10	8.10	8.70	107

Note: Other configurations, sizes, colors and length not specified herein are available upon request.
