Automotive Cable
Germany Standard
Single-core cable
FLR4Y
Application
Automotive PVC insulated single-core cable is used for automobiles, motorcycles and other motor vehicles. Especially suitable for use as fuel gauge wire, this cable is gasoline and diesel resistant.

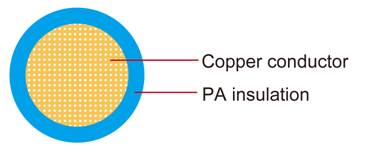

Construction:
Conductor:
Cu-ETP1 bare or tinned according to DIN EN13602
Insulation:
Polyamide(PA)
Standard Compliance:
ISO 6722 Class B
Technical Parameters:
Operating temperature:-40℃ to 105℃
| Conductor | Insulation | Cable | ||||
| Nominal cross- section | No. and Dia. of Wires | Diameter max. | Resistance at 20℃ Bare/tinned max. mΩ/m | thickness wall min. |
Overall diameter | Weight approx. |
| (mm2) | No./mm | mm | mΩ/m | (mm) | (mm) | kg/km |
| FLR4Y-A | ||||||
| 1x0.35 | 7/0.26 | 0.80 | 52.00/54.50 | 0.20 | 1.30 | 5 |
| 1x0.50 | 19/0.19 | 1.00 | 37.10/38.20 | 0.22 | 1.60 | 6 |
| 1x0.75 | 19/0.23 | 1.20 | 24.70/25.40 | 0.24 | 1.90 | 8 |
| 1x1.00 | 19/0.26 | 1.35 | 18.50/19.10 | 0.24 | 2.10 | 11 |
| 1x1.50 | 19/0.32 | 1.70 | 12.70/13.00 | 0.24 | 2.40 | 15 |
| 1x2.50 | 19/0.41 | 2.20 | 7.60/7.80 | 0.28 | 3.00 | 24 |
| FLR4Y-B | ||||||
| 1x0.35 | 12/0.21 | 0.90 | 52.00/54.50 | 0.20 | 1.40 | 4 |
| 1x0.50 | 16/0.21 | 1.00 | 37.10/38.20 | 0.22 | 1.60 | 6 |
| 1x0.75 | 24/0.21 | 1.20 | 24.70/25.40 | 0.24 | 1.90 | 8 |
| 1x1.00 | 32/0.21 | 1.35 | 18.50/19.10 | 0.24 | 2.10 | 11 |
| 1x1.50 | 30/0.26 | 1.70 | 12.70/13.00 | 0.24 | 2.40 | 15 |
| 1x2.50 | 50/0.26 | 2.20 | 7.60/7.80 | 0.28 | 3.00 | 24 |
| 1x4.00 | 56/0.31 | 2.75 | 4.70/4.80 | 0.32 | 3.70 | 40 |
Note: Other configurations, sizes, colors and length not specified herein are available upon request.
