Automotive Cable
FLRY-A Single-core cable
Application
FLRY-A Automotive PVC insulated single-core cable with symmetrical conductor structure (type A) and thin wall is used for automobiles, motorcycles electrical equipment in high temperature condition.

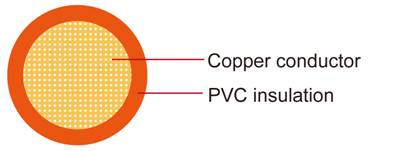

Construction:
Conductor: Cu-ETP1 bare or tinned copper according to DIN EN13602
Insulation: PVC
Standard Compliance: ISO 6722 Class B
Technical Parameters:
Operating temperature:-40℃ to 105℃
| Conductor | Insulation | Cable | ||||
| Nominal cross- section | No. and Dia. of Wires | Diameter max. | Resistance at 20℃ Bare/tinned max. mΩ/m | thickness Wall min. |
Overall diameter max. | Weight approx. |
| mm2 | No./mm | (mm) | mΩ/m | (mm) | (mm) | kg/km |
| 1x0.22 | 7/0.21 | 0.70 | 84.80/86.50 | 0.20 | 1.20 | 3 |
| 1x0.35 | 7/0.26 | 0.80 | 52.00/54.50 | 0.20 | 1.30 | 5 |
| 1x0.50 | 19/0.19 | 1.00 | 37.10/38.20 | 0.22 | 1.60 | 7 |
| 1x0.75 | 19/0.23 | 1.20 | 24.70/25.40 | 0.24 | 1.90 | 9 |
| 1x1.00 | 19/0.26 | 1.35 | 18.50/19.10 | 0.24 | 2.10 | 11 |
| 1x1.50 | 19/0.32 | 1.70 | 12.70/13.00 | 0.24 | 2.40 | 16 |
| 1x2.00 | 19/0.37 | 2.00 | 9.42/9.69 | 0.24 | 2.60 | 23 |
| 1x2.50 | 19/0.41 | 2.20 | 7.60/7.80 | 0.28 | 3.00 | 26 |
Note: Other configurations, sizes, colors and length not specified herein are available upon request.
