Automotive Cable
Germany Standard
FLRYCY
Application
Automotive PVC insulated,PVCsheathed multi-cores cable is used for car communication cable.

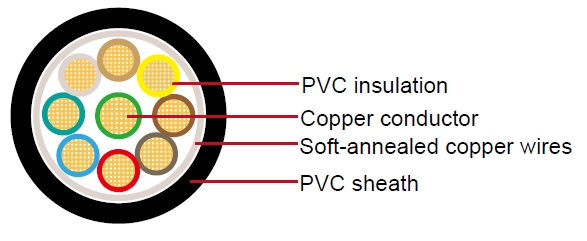

Construction:
Conductor:
Cu-ETP1 according to DIN EN 13602
Insulation:
PVC
Shielding:
Soft-annealed copper wires CU-ETP1 or with tin coated soft-annealed copper wires specified in DIN 40500 and DIN EN 13602
Optical coverage of approximately 85% is reflected in very efficient shield attenuation.
Sheath:
PVC
Standard Compliance:
ISO 6722 Calss B
Technical Parameters:
Operating temperature:–40 °C to +105 °C
| Conductor | Insulation | Cable | |||||||
| Nominal cross- section | No. and Dia. of Wires. | Diameter Max. | Electrical resistance at 20℃ Bare/tinned Max. | thickness wall Nom. | Diameter of core | Sheath thickness | Overall Diameter min. | Overall Diameter max. | Weight approx. |
| mm2 | No./mm | mm | mΩ/m | mm | mm | mm | mm | mm | Kg/km |
| 9 x0.08 | 10/0.11 | 0.45 | 35.30/36.50 | 0.20 | 0.80 | 0.60 | 4.60 | 4.90 | 38 |
| 10 x0.25 | 14/0.16 | 0.70 | 84.80/86.50 | 0.20 | 1.10 | 0.60 | 5.80 | 6.20 | 68 |
| 5 x0.35 | 19/0.16 | 0.80 | 52.00/54.50 | 0.25 | 1.30 | 0.50 | 4.70 | 5.10 | 47 |
| 8 x0.35 | 19/0.16 | 0.80 | 52.00/54.50 | 0.25 | 1.25 | 0.65 | 5.90 | 6.30 | 75 |
| 10 x0.35 | 19/0.16 | 0.80 | 52.00/54.50 | 0.25 | 1.25 | 0.65 | 6.50 | 6.90 | 83 |
Note: Other configurations, sizes, colors and length not specified herein are available upon request.
