Automotive Cable
Germany Standard
Single-core cable
FLRYK
Application and Description
This PVC insulated low-tension automotive cable is used in motorcycles and other motor vehicles for starting ,charging,lighting,signal and instrument panel circuits.

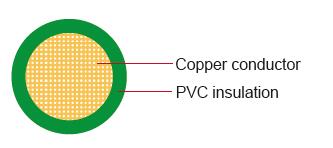

Construction:
Conductor:
Cu-ETP1 bare according to DIN EN 13602
Insulation:
PVC insulation(cold resistant)
Standard:
ISO 6722 Class B
Special properties:
Cold bending test according to ISO 6722 at –50 °C.
Short-term and long-term ageing according to ISO 6722, Class B.
Technical Parameters:
Operating temperature: –50°C to +105°C
Conductor Construction |
Insulation |
Cable |
|||||
| Nominal cross- section | No. and Dia. of Wires | Diameter of Conductor max. |
Electrical resistance at 20°C max. | Nominal thickness | Overall Diameter Min. | Overall Diameter Max. | Weight approx. |
| mm2 | No./mm | mm | mΩ/m | mm | mm | mm | kg/km |
| 1x0.50 | 16 /0.21 | 1.0 | 37.7 | 0.22 | 1.4 | 1.6 | 7 |
| 1x1.00 | 32/0.21 | 1.4 | 18.5 | 0.30 | 2.3 | 2.1 | 12 |
| 1x1.50 | 30/0.26 | 1.7 | 12.7 | 0.24 | 2.2 | 2.4 | 17 |
| 1x2.50 | 50/0.26 | 2.1 | 7.6 | 0.70 | 3.5 | 3.7 | 33 |
Note: Other configurations, sizes, colors and length not specified herein are available upon request.
