Automotive Cable
Germany Standard
Single-core cable
FLY
Application
Automotive PVC insulated single-core unshielded low-tension wire is used for automobiles.

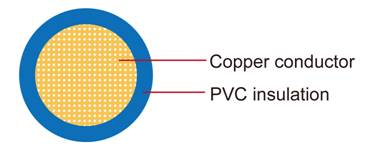

Construction:
Conductor:
Cu-ETP1 bare according to DIN EN 13602
Insulation:
PVC
Standard：
ISO 6722 Class B
Special properties:
Conductors >6mm² are suitable for use as battery cables
Technical Parameters:
Operating temperature: –40°C to +105°C
| Conductor | Insulation | Cable | ||||||
| Nominal cross- section |
No. and Dia. of Wires | Diameter max. | Electrical resistance at 20℃ max. | thickness Wall Nom. | Overall Diameter Min. | Overall Diameter Max. | Weight approx. | |
| mm2 | No./mm | (mm) | mΩ/m | (mm) | mm | mm | kg/km | |
| 1x0.50 | 16 /0.21 | 1.00 | 37.10 | 0.48 | 2.00 | 2.30 | 8 | |
| 1x0.75 | 24/0.21 | 1.20 | 24.70 | 0.48 | 2.20 | 2.50 | 12 | |
| 1x1.00 | 32/0.21 | 1.35 | 18.50 | 0.48 | 2.40 | 2.70 | 15 | |
| 1x1.50 | 30/0.26 | 1.70 | 12.70 | 0.48 | 2.70 | 3.00 | 20 | |
| 1x2.00 | 40/0.26 | 2.00 | 9.42 | 0.60 | 2.90 | 3.20 | 26 | |
| 1x2.50 | 50/0.26 | 2.20 | 7.60 | 0.70 | 3.30 | 3.70 | 32 | |
| 1x3.00 | 60/0.26 | 2.50 | 6.00 | 0.70 | 3.50 | 3.90 | 37 | |
| 1x4.00 | 56/0.31 | 2.75 | 4.71 | 0.80 | 4.00 | 4.40 | 49 | |
| 1x6.00 | 84/0.31 | 3.30 | 3.14 | 0.80 | 4.60 | 5.00 | 68 | |
| 1x10.00 | 80 /0.41 | 4.50 | 1.82 | 0.80 | 6.00 | 6.50 | 117 | |
| 1x16.00 | 126/0.41 | 6.30 | 1.16 | 0.80 | 7.50 | 8.30 | 193 | |
| 1x25.00 | 196/0.41 | 7.80 | 0.74 | 1.04 | 9.50 | 10.40 | 274 | |
| 1x35.00 | 276/0.41 | 9.00 | 0.53 | 1.04 | 10.60 | 11.60 | 397 | |
| 1x50.00 | 400/0.41 | 10.50 | 0.37 | 1.20 | 12.90 | 13.50 | 547 | |
| 1x70.00 | 555/0.41 | 12.50 | 0.26 | 1.20 | 14.80 | 15.50 | 769 | |
| 1x95.00 | 740/0.41 | 14.80 | 0.20 | 1.28 | 17.00 | 18.00 | 990 | |
| 1x120.00 | 960/0.41 | 16.50 | 0.15 | 1.60 | 18.70 | 19.70 | 1250 | |
Note: Other configurations, sizes, colors and length not specified herein are available upon request.
