Automotive Cable
FLYY Single-core cable
Application
FLYY Automotive PVC insulated single-core unshielded low-tension wire is used for automobiles, Motorcycles and other motor vehicles.

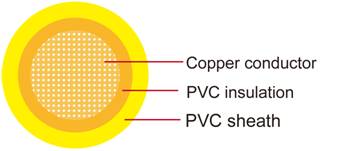

Construction:
Conductor:Cu-ETP1 bare according to DIN EN 13602
Insulation:PVC
Sheath:PVC
Standard Compliance:ISO 6722 Calss B
Technical Parameters:
Operating temperature:-40℃ to 105℃
| Conductor | Insulation | Cable | |||||||
| Nominal | No. and Dia. of Wires | Diameter max. | Electrical resistance at 20℃ max. | Thickness Wall Nom. | Diameter of Core | Sheath Thickness | Overall Diameter Min. | Overall Diameter Max | Weight approx. |
| (mm2) | No./mm | mm | mΩ/m | (mm) | (mm) | (mm) | (mm) | mm | kg/km |
| 1x0.50 | 16/0.21 | 1.00 | 37.10 | 0.60 | 2.10 | 0.40 | 2.70 | 3.10 | 14 |
| 1x0.75 | 24/0.21 | 1.20 | 24.70 | 0.60 | 2.30 | 0.40 | 3.00 | 3.30 | 17 |
| 1x1.00 | 32/0.21 | 1.35 | 18.50 | 0.60 | 2.50 | 0.40 | 3.20 | 3.60 | 20 |
| 1x1.50 | 30/0.26 | 1.70 | 12.70 | 0.60 | 2.80 | 0.50 | 3.70 | 4.10 | 28 |
| 1x2.00 | 40/0.26 | 2.00 | 9.42 | 0.60 | 3.00 | 0.50 | 3.90 | 4.30 | 33 |
| 1x2.50 | 50/0.26 | 2.20 | 7.60 | 0.70 | 3.50 | 0.50 | 4.30 | 4.80 | 41 |
Note: Other configurations, sizes, colors and length not specified herein are available upon request.
