Automotive Cable
GXL
Application
Automotive XLPE insulated single-core cable is used in automotive applications where higher heat resistance and small diameter is required.

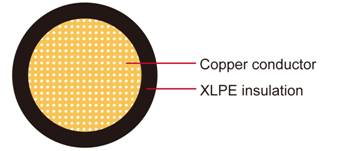

Construction:
Conductor:
Soft-annealed copperaccording to ASTM B3
Insulation:
XLPE (Polyethylene crosslinked)
Standard Compliance:
SAE J1128
Technical Parameters:
Operating temperature:–40 °C to +125 °C
| Conductor | Insulation | Cable | |||||
| SIZE | Nominal cross- section | No. and Dia. of Wires | Diameter Max. | thickness wall min. | thickness wall Nom. | Overall Diameter (max..) | Weight approx. |
| AWG | mm2 | No./mm | mm | mm | mm | mm | Kg/km |
| 20 | 1 x 0.50 | 19/0.20 | 0.97 | 0.41 | 0.58 | 2.40 | 9 |
| 18 | 1 x 0.80 | 19/0.23 | 1.17 | 0.41 | 0.58 | 2.50 | 12 |
| 18 | 1 x 0.80 | 16/0.25 | 1.17 | 0.41 | 0.58 | 2.50 | 12 |
| 16 | 1 x 1.00 | 19/0.24 | 1.45 | 0.41 | 0.58 | 2.90 | 17 |
| 14 | 1 x 2.00 | 19/0.36 | 1.80 | 0.41 | 0.58 | 3.20 | 25 |
| 12 | 1 x 3.00 | 19/0.45 | 2.29 | 0.46 | 0.66 | 3.80 | 38 |
| 10 | 1 x 5.00 | 19/0.57 | 2.87 | 0.56 | 0.79 | 4.70 | 58 |
Note: Other configurations, sizes, colors and length not specified herein are available upon request.
