Automotive Cable
SXL
Application
Automotive XLPE insulated single-core cable is used in automotive applications where higher heat resistance is required.

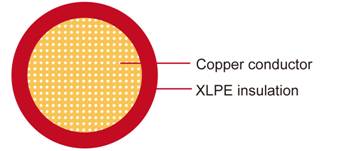

Construction:
Conductor:
Soft-annealed copperaccording to ASTM B3
Insulation:
XLPE (Polyethylene crosslinked)
Standard Compliance:
SAE J1128
Technical Parameters:
Operating temperature:–40 °C to +125 °C
| Conductor | Insulation | Cable | |||||
| SIZE | Nominal cross- section | No. and Dia. of Wires | Diameter Max. | thickness wall min. | Nominal Wall thickness Nom. | Overall Diameter (max..) | Weight approx. |
| AWG | mm2 | No./mm | mm | mm | mm | mm | Kg/km |
| 20 | 1 x 0.50 | 7\0.32 | 0.97 | 0.52 | 0.74 | 2.80 | 11 |
| 18 | 1 x 0.80 | 19\0.23 | 1.17 | 0.53 | 0.76 | 3.00 | 15 |
| 16 | 1 x 1.00 | 19\0.28 | 1.45 | 0.57 | 0.81 | 3.40 | 20 |
| 14 | 1 x 2.00 | 19\0.36 | 1.80 | 0.62 | 0.89 | 3.90 | 29 |
| 12 | 1 x 3.00 | 19\0.45 | 2.29 | 0.66 | 0.94 | 4.60 | 43 |
| 10 | 1 x 5.00 | 19\0.57 | 2.87 | 0.73 | 1.04 | 5.30 | 64 |
Note: Other configurations, sizes, colors and length not specified herein are available upon request.
