Automotive Cable
WXC cables
Application
WXC type XLPE insulated low-voltage cable is designed for used at nominal voltage of 60v dc (60V AC rms) or surface vehicles electrical systems.

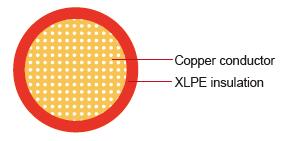

Construction
Conductor: Soft-annealed copper according to ASTM B Insulation:XLPE Ultra-Thin wall flame-retardant,halogen-free
Standard: SAE J1678
Special properties: Flexible
Technical Parameters: Operating temperature: –40°C to +125°C
Conductor Construction |
Insulation |
|||||
| Size | Nominal cross- section |
No. and Dia. of Wires | Diameter of Conductor max. |
Nominal thickness | Overall Diameter Max. |
Weight approx. |
| AWG | mm2 | No./mm | mm | mm | mm | kg/km |
| 22 | 1x0.35 | 7/0.25 | 0.76 | 0.20 | 1.35 | 4 |
| 20 | 1x0.50 | 7/0.32 | 0.97 | 0.20 | 1.55 | 7 |
| 18 | 1x0.80 | 19/0.23 | 1.17 | 0.20 | 1.75 | 8 |
| 16 | 1x1.3 | 19/0.28 | 1.45 | 0.20 | 2.03 | 12 |
| 14 | 1x2 | 19/0.36 | 1.8 | 0.20 | 2.39 | 19 |
| 12 | 1x3 | 19/0.45 | 2.3 | 0.24 | 3.00 | 30 |
Note: Other configurations, sizes, colors and length not specified herein are available upon request.
