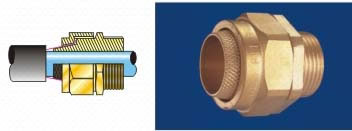

Single Compression BW Type Cable Glands for Armoured & Braided Cables
 |
 |
StandardsBS 6121: 1989 ApplicationsSuitable for all types of plastic or rubber sheathed single wire armoured cables. If is used in indoor applications not requiring the weatherproof feature of an inner or outer seal. FeatureThe gland provides mechanical cable retention & electrical wire continuity via armour wire termination. It provides an integral clamp for armoured cables. This armour clamp provides an electrical bond between the cable armour and the gland. Ingress ProtectionIP30 MaterialBrass BS 2874 CZ121 Pb3 Thread OptionISO METRIC; NPT; BSP; PG or as specified Plating OptionBrass Finish, Nickel Finish, Chrome Finish or as specified. Operating Temperature-80 ℃ to +300 ℃ AccessoriesLock Nut, Sealing Washer, Earth Tag, Shroud, Serrated Washer, Stopping Plug, Reducer, Adaptor Ordering Code(Gland Type / Size & Entry Thread Size), e.g. BW 32/M32 – 10mm |

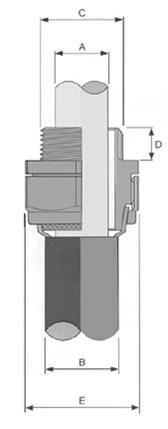

Technical Data
Part No. |
Entry Threads Size Metric "C" |
Entry Thread Length "D" |
Inner Cable Sheath Diameter "A" |
Outer Cable Sheath Diameter "B" |
Armour Wire Diameter |
Braid Wire Diameter |
Main Across Corner Diameter "E" |
| BW-20S | M20 | 10 | 11.6 | 16.1 | 0.9/1.25 | 0.05/0.8 | 24.4 |
| BW-20 | M20 | 10 | 13.9 | 21.1 | 0.9/1.25 | 0.05/0.8 | 30.0 |
| BW-25 | M25 | 10 | 19.9 | 27.4 | 1.25/1.60 | 0.05/0.8 | 36.0 |
| BW-32 | M32 | 10 | 26.2 | 34.4 | 1.60/2.00 | 0.05/0.8 | 44.5 |
| BW-40 | M40 | 15 | 32.1 | 42.4 | 1.60/2.00 | 0.05/1.2 | 56.3 |
| BW-50S | M50 | 15 | 38.1 | 50.1 | 2.00/2.50 | 0.05/1.2 | 63.4 |
| BW-50 | M50 | 15 | 44.0 | 55.7 | 2.00/2.50 | 0.05/1.2 | 72.1 |
| BW-63S | M63 | 15 | 50.0 | 62.4 | 2.50 | 0.05/1.2 | 83.7 |
| BW-63 | M63 | 15 | 55.9 | 68.2 | 2.50 | 0.05/1.2 | 88.7 |
| BW-75S | M75 | 15 | 61.9 | 76.8 | 2.50 | 0.05/1.2 | 99.8 |
| BW-75 | M75 | 15 | 67.9 | 82.9 | 2.50/3.15 | 0.05/1.2 | 105.3 |
