IMSA 51-5(Loop Detector Cable)

Application and Description :

These cables are used in road pavements to detect vehicles for the purpose of changing signals or
determining amount of traffic flow.

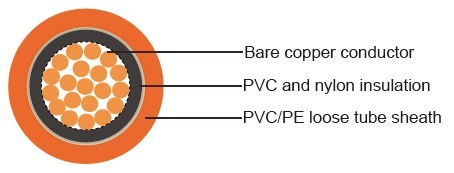

Cable Construction:

- Conductor: Stranded bare copper per ASTM B-8
- Insulation: PVC(15Mils)/Nylon(5Mils)
- Sheath: PE or PVC loose Tube, black or orange

Temperature Rating:

60°C

Voltage Rating:

600 V

Cable Parameter :

AWG	No. of Conductor	Solid or Stranded	Insulation Thickness		Sheath thickness		Overall Diameter		Cable Weight
			inches	mm	inches	mm	inches	mm	Lbs./ Kft	Kg/Km
PE tube
14	1	19strand	0.02	0.51	0.030	0.76	0.18	4.57	22	33
12	1	19strand	0.02	0.51	0.030	0.76	0.2	5.08	29	43
PVC tube
14	1	19strand	0.02	0.51	0.030	0.76	0.18	4.57	30	45
12	1	19strand	0.02	0.51	0.030	0.76	0.2	5.08	36	54
