H05V2-K UL/H07V2-K UL

Application and Description

H05V2-K UL / H07V2-K UL are internationally approved harmonized, UL/CSA and AWM/MTW approved
PVC European flexible single-conductor wires with increased temperature range for HAR/IEC and higher
working voltage for UL-AWM. Due to these increases it is suitable for use in connections and internal
wirings of frequency converters. Can be found in appliance wiring and machine tool wiring as well as in
control systems. They may also be used in pipes and flexible conduits. Recommended for the internal
wiring of apparatus, switchboards and distributor boards in electronic and electrical equipment designed for
international use in North American & European countries and for MRO replacement of international made
equipment wire.

Standard and Approval

<HAR> HD 21.7 S2, <HAR> H05V2-K / H07V2-K, VDE-0281 Part-3,
UL-Standard and Approval 1063 MTW, UL-AWM Style 10269, CSA TEW, CSA-AWM 1 A/B, FT-1,
CE Low Voltage Directive 73/23/EEC and 93/68/EEC, ROHS compliant

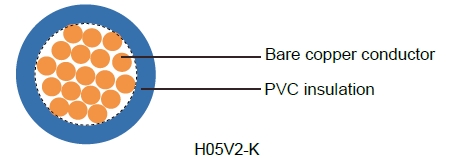

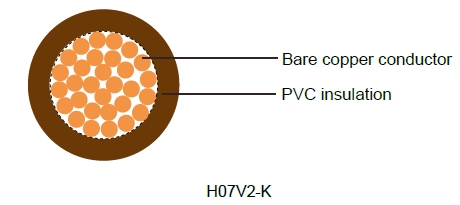

Cable Construction

Fine tinned copper strands
Strands to VDE-0295 Class-5, IEC 60228 Class-5
Special PVC core insulation
Cores to VDE-0293 colors on chart
H05V2-K UL (22, 20 & 18 AWG)
H07V2-K UL (16 AWG and Larger)
X05V2-K UL & X07V2-K UL for non-HAR colors

 H05V2-K UL/H07V2-K UL              H05V2-K UL/H07V2-K UL

Technical Characteristics

Working voltage: 300/500v (H05V2-K UL)
Working voltage: 450/750v (H07V2-K UL)
Working voltage UL(MTW) & CSA: 600v
Working voltage UL (AWM): 1000v
Test voltage: 2500 volts (4000 volts UL)
Flexing/Static bending radius: 10-15 x Ø
Temperature HAR/IEC: -40º to +90º C
Temperature UL-AWM: -40º to +105º C
Temperature UL-MTW: -40º C to +90º C
Temperature CSA-TEW: -40º C to +105º C
Flame retardant: IEC 60332.1, FT-1, UL VW-1
Insulation resistance: 20 MΩ x km



Cable Parameter

AWG
No. of Cores x Nominal Cross Sectional Area # x mm²
Nominal Thickness of Insulation mm
Nominal Overall Diameter mm
Nominal Copper Weight kg/Km
Nominal Weight kg/Km
20(16/32)
1 x 0.5
0.6
2.5
4.8
11
18(24/32)
1 x 0.75
0.6
2.7
7.2
14
17(32/32)
1 x 1
0.6
2.9
9.6
16
16(30/30)
1 x 1.5
0.7
3.1
14.4
20
14(50/30)
1 x 2.5
0.8
3.7
24
32
12(56/28)
1 x 4
0.8
4.4
38
50
10(84/28)
1 x 6
0.8
4.9
58
66
8(80/26)
1 x 10
1.0
6.8
96
121
6(128/26)
1 x 16
1.0
8.9
154
211
4 (200/26)
1 x 25
1.2
10.1
240
303
2 (280/26)
1 x 35
1.2
11.4
336
407
1 (400/26)
1 x 50
1.4
14.1
480
600
2/0 (356/24)
1 x 70
1.4
15.8
672
790
3/0 (485/24)
1 x 95
1.6
18.1
912
1067
4/0 (614/24)
1 x 120
1.6
19.5
1115
1277
