H05VVC4V5-K

Application and Description
H05VVC4V5-K cables are suitable for dry, damp and wet locations but not in the open-air. They are used as screened termination and connection cable in the control, measuring and signal technology. The copper braiding
optimises protection against external interferences, like electromagnetic fields and stray frequencies.
Suitable as a signal and impulse cable for control and inspection of industrial plants, machinery and working
processes.

Standard and Approval

<HAR> HD 21.13 S1, VDE-0281 Part-13, CEI 20-20/13, CEI 20-35 (EN60332-1) , CEI 20-52, UL 2464

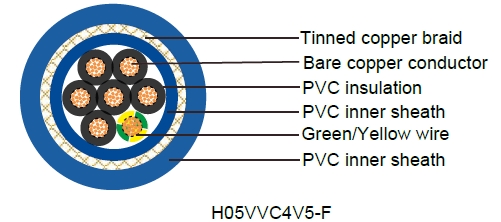

Cable Construction

Fine bare copper strands
Strands to VDE-0295 Class-5, IEC 60228 Class-5
PVC insulation T12 to DIN VDE 0281 part 1
Green-yellow grounding (3 conductors and above)
Cores to VDE-0293 colors
PVC inner sheath TM2 to DIN VDE 0281 part 1
Tinned copper braided shielding, covering approx. 85%
PVC outer jacket TM5 to DIN VDE 0281 part 1

Technical Characteristics

Working voltage: 300/500v
Test voltage: 2000volts
Flexing bending radius: 10 x Ø
Static bending radius: 5 x Ø
Flexing temperature: -5º C to +70º C
Static temperature: -40º C to +70º C
Flame retardant: IEC 60332.1
Insulation resistance: 20 MΩ x km

H05VVC4V5-K            H05VVC4V5-K

Cable Parameter

AWG
No. of Cores x Nominal Cross Sectional Area # x mm²
Nominal Thickness of Insulation mm
Nominal Thickness of Inner Sheath mm
Nominal Thickness of outer Sheath mm
Nominal Overall Diameter mm
Nominal Copper Weight kg/Km
Nominal Weight kg/Km
20(16/32)
2 x 0.50
0.6
0.7
0.9
7.7
35
105
18(24/32)
2 x 0.75
0.6
0.7
0.9
8
39
115
17(32/32)
2 x 1.0
0.6
0.7
0.9
8.2
44
125
16(30/30)
2 x 1.50
0.7
0.7
1.0
9.3
58
160
14(30/50)
2 x 2.50
0.8
0.7
1.1
10.7
82
215
20(16/32)
3 x 0.50
0.6
0.7
0.9
8
40
115
18(24/32)
3 x 0.75
0.6
0.7
0.9
8.3
47
125
17(32/32)
3 x 1.0
0.6
0.7
1.0
8.8
54
145
16(30/30)
3 x 1.50
0.7
0.7
1.0
9.7
73
185
14(30/50)
3 x 2.50
0.8
0.7
1.1
11.3
106
250
20(16/32)
4 x 0.50
0.6
0.7
0.9
8.5
44
125
18(24/32)
4 x 0.75
0.6
0.7
1.0
9.1
58
155
17(32/32)
4 x 1.0
0.6
0.7
1.0
9.4
68
170
16(30/30)
4 x 1.50
0.7
0.7
1.1
10.7
93
220
14(30/50)
4 x 2.50
0.8
0.8
1.2
12.6
135
305
20(16/32)
5 x 0.50
0.6
0.7
1.0
9.3
55
155
18(24/32)
5 x 0.75
0.6
0.7
1.1
9.7
66
175
17(32/32)
5 x 1.0
0.6
0.7
1.1
10.3
78
200
16(30/30)
5 x 1.50
0.7
0.8
1.2
11.8
106
265
14(30/50)
5 x 2.50
0.8
0.8
1.3
13.9
181
385
20(16/32)
7 x 0.50
0.6
0.7
1.1
10.8
69
205
18(24/32)
7 x 0.75
0.6
0.7
1.2
11.5
84
250
17(32/32)
7 x 1.0
0.6
0.8
1.2
12.2
107
275
16(30/30)
7 x 1.50
0.7
0.8
1.3
14.1
162
395
14(30/50)
7 x 2.50
0.8
0.8
1.5
16.5
238
525
20(16/32)
12 x 0.50
0.6
0.8
1.3
13.3
98
285
18(24/32)
12 x 0.75
0.6
0.8
1.3
13.9
125
330
17(32/32)
12 x 1.0
0.6
0.8
1.4
14.7
176
400
16(30/30)
12 x 1.50
0.7
0.8
1.5
16.7
243
525
14(30/50)
12 x 2.50
0.8
0.8
1.7
19.9
367
745
20(16/32)
18 x 0.50
0.6
0.9
1.3
18.6
147
385
18(24/32)
18 x 0.75
0.6
0.8
1.5
19.9
200
475
17(32/32)
18 x 1.0
0.6
0.8
1.5
20.8
243
525
16(30/30)
18 x 1.50
0.7
0.8
1.7
24.1
338
720
14(30/50)
18 x 2.50
0.8
0.9
2.0
28.5
555
1075
20(16/32)
25 x 0.50
0.6
0.8
1.6
22.1
199
505
18(24/32)
25 x 0.75
0.6
0.9
1.7
23.7
273
625
17(32/32)
25 x 1.0
0.6
0.9
1.7
24.7
351
723
16(30/30)
25 x 1.50
0.7
0.9
2.0
28.6
494
990
14(30/50)
25 x 2.50
0.8
1.0
2.3
34.5
792
1440
20(16/32)
36 x 0.50
0.6
0.9
1.7
24.7
317
620
18(24/32)
36 x 0.75
0.6
0.9
1.8
26.2
358
889
17(32/32)
36 x 1.0
0.6
0.9
1.9
27.6
438
910
16(30/30)
36 x 1.50
0.7
1.0
2.2
32.5
662
1305
14(30/50)
36 x 2.50
0.8
1.0
2.4
38.5
1028
1850
20(16/32)
48 x 0.50
0.6
0.9
1.9
28.3
353
845
18(24/32)
48 x 0.75
0.6
1.0
2.1
30.4
490
1060
17(32/32)
48 x 1.0
0.6
1.0
2.1
31.9
604
1210
16(30/30)
48 x 1.50
0.7
1.1
2.4
37
855
1665
14(30/50)
48 x 2.50
0.8
1.1
2.4
43.7
1389
2390
20(16/32)
60 x 0.50
0.6
1.2
2.1
31.1
432
1045
18(24/32)
60 x 0.75
0.6
1.0
2.3
32.9
576
1265
17(32/32)
60 x 1.0
0.6
1.0
2.3
34.7
720
1455
16(30/30)
60 x 1.50
0.7
1.1
2.4
39.9
1050
1990
14(30/50)
60 x 2.50
0.8
1.2
2.4
47.2
1706
2870
