Industrial Cables - Multi-Core Flexible Cables
VC4V-K
Application and Description
VC4V-K cables are high security cables. In case of fire, they emit limited toxic or corrosive gases, thereby
protecting public health and avoiding any possible damage to electronic equipment. For this reason, its use
is recommended used in domestic premises, kitchens, offices; or for household appliances, even those in
damp places; for medium mechanical stress (e.g. washing machines, refrigerators).
Standard and Approval
UNE 21031, EN 60332, EN 60332-1, EN 50268, EN 50267-2, EN 61034, IEC 60332-1, IEC 60332-3,
IEC 61034, IEC 60331

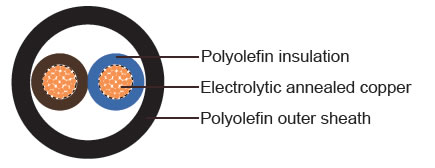

Cable Construction
Flexible electrolytic annealed copper conductor
Class 5 in accordance with IEC 60228
Polyolefin insulation type TI6 according to UNE 21031-14
Color coded to HD 308
FRLSHF polyolefin outer sheath type TI6 according to UNE 21031-14
Technical Characteristics
Working voltage: 300/500 volts 600/1000volts
Test voltage: 2000 volts(300/500 volts);
3500 volts(600/1000 volts)
Minimum bending radius: 5x Ø
Working temperature: -15º C to +90º C
Fixed temperature: -40º C to +90º C
Flame retardant: EN50265-1/EN 60332-1
Fire retardant: EN50266-2/IEC 60332-3
Halogen-free: EN50267/EN 50267-2-1
Low smoke opacity: EN 50268/IEC 61034
Low corrosiveness gases: EN 50267-2-2
Cable Parameter
| AWG (No of Strands/ Strand Diameter) | No. of Cores x Nominal Cross Sectional Area #xmm² |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
| 300/500V | |||
| 20(16/32) | 2x0.5 | 5.8 | 42 |
| 20(16/32) | 3G0.5 | 6.2 | 51 |
| 20(16/32) | 4G0.5 | 7.2 | 69 |
| 20(16/32) | 5G0.5 | 8.2 | 89 |
| 20(16/32) | 6G0.5 | 9 | 111 |
| 20(16/32) | 7G0.5 | 9 | 115 |
| 20(16/32) | 8G0.5 | 9.9 | 132 |
| 20(16/32) | 10G0.5 | 11.9 | 185 |
| 20(16/32) | 12G0.5 | 12.3 | 203 |
| 20(16/32) | 14G0.5 | 12.6 | 219 |
| 20(16/32) | 16G0.5 | 13.3 | 246 |
| 20(16/32) | 20G0.5 | 14.5 | 296 |
| 20(16/32) | 24G0.5 | 16.5 | 376 |
| 20(16/32) | 30G0.5 | 17.2 | 425 |
| 20(16/32) | 37G0.5 | 18.8 | 512 |
| 20(16/32) | 40G0.5 | 19.2 | 530 |
| 20(16/32) | 50G0.5 | 21.3 | 680 |
| 20(16/32) | 60G0.5 | 23.2 | 780 |
| 18(24/32) | 2x0.75 | 6.6 | 56 |
| 18(24/32) | 3G0.75 | 6.8 | 65 |
| 18(24/32) | 4G0.75 | 7.6 | 83 |
| 18(24/32) | 5G0.75 | 8.6 | 105 |
| 18(24/32) | 6G0.75 | 9.7 | 132 |
| 18(24/32) | 7G0.75 | 9.7 | 138 |
| 18(24/32) | 8G0.75 | 10.4 | 158 |
| 18(24/32) | 10G0.75 | 12.2 | 212 |
| 18(24/32) | 12G0.75 | 12.6 | 234 |
| 18(24/32) | 14G0.75 | 13.4 | 268 |
| 18(24/32) | 16G0.75 | 14.2 | 302 |
| 18(24/32) | 20G0.75 | 15.5 | 366 |
| 18(24/32) | 24G0.75 | 17.7 | 465 |
| 18(24/32) | 30G0.75 | 18.9 | 546 |
| 18(24/32) | 37G0.75 | 20.7 | 661 |
| 18(24/32) | 40G0.75 | 21.5 | 681 |
| 18(24/32) | 50G0.75 | 23.3 | 855 |
| 18(24/32) | 60G0.75 | 24.8 | 1025 |
| 17(32/32) | 2x1 | 7 | 66 |
| 17(32/32) | 3G1 | 7.2 | 76 |
| 17(32/32) | 4G1 | 8.1 | 98 |
| 17(32/32) | 5G1 | 8.9 | 120 |
| 17(32/32) | 6G1 | 10.3 | 156 |
| 17(32/32) | 7G1 | 10.3 | 164 |
| 17(32/32) | 8G1 | 11.2 | 192 |
| 17(32/32) | 10G1 | 13.2 | 257 |
| 17(32/32) | 12G1 | 13.6 | 284 |
| 17(32/32) | 14G1 | 14 | 311 |
| 17(32/32) | 16G1 | 14.8 | 351 |
| 17(32/32) | 20G1 | 16.5 | 437 |
| 17(32/32) | 24G1 | 19 | 560 |
| 17(32/32) | 30G1 | 19.8 | 639 |
| 17(32/32) | 37G1 | 21.6 | 772 |
| 17(32/32) | 40G1 | 22.8 | 835 |
| 17(32/32) | 50G1 | 25.9 | 1100 |
| 17(32/32) | 60G1 | 27.8 | 1276 |
| 600/1000V | |||
| 16(30/30) | 2 x 1.5 | 8.1 | 93 |
| 16(30/30) | 3 G 1.5 | 8.6 | 110 |
| 16(30/30) | 4 G 1.5 | 9.4 | 132 |
| 16(30/30) | 5 G 1.5 | 9.9 | 150 |
| 16(30/30) | 6 G 1.5 | 11.5 | 188 |
| 16(30/30) | 7 G 1.5 | 11.5 | 197 |
| 16(30/30) | 8 G 1.5 | 12.1 | 220 |
| 16(30/30) | 10 G 1.5 | 14.2 | 286 |
| 16(30/30) | 12 G 1.5 | 14.7 | 317 |
| 16(30/30) | 14 G 1.5 | 15.4 | 353 |
| 16(30/30) | 16 G 1.5 | 16.4 | 398 |
| 16(30/30) | 20 G 1.5 | 18.1 | 484 |
| 16(30/30) | 24 G 1.5 | 20.8 | 608 |
| 16(30/30) | 25 G 1.5 | 20.8 | 630 |
| 16(30/30) | 27 G 1.5 | 21.2 | 649 |
| 16(30/30) | 30 G 1.5 | 21.7 | 694 |
| 16(30/30) | 37 G 1.5 | 23.9 | 839 |
| 16(30/30) | 44 G 1.5 | 25.9 | 985 |
| 16(30/30) | 52 G 1.5 | 28.1 | 1205 |
| 16(30/30) | 60 G 1.5 | 30.2 | 1335 |
| 14(50/30) | 2 x 2.5 | 9 | 119 |
| 14(50/30) | 3 G 2.5 | 9.6 | 144 |
| 14(50/30) | 4 G 2.5 | 10.5 | 175 |
| 14(50/30) | 5 G 2.5 | 11.1 | 201 |
| 14(50/30) | 6 G 2.5 | 12.7 | 250 |
| 14(50/30) | 7 G 2.5 | 12.9 | 265 |
| 14(50/30) | 8 G 2.5 | 13.6 | 300 |
| 14(50/30) | 10 G 2.5 | 16.3 | 399 |
| 14(50/30) | 12 G 2.5 | 16.7 | 440 |
| 14(50/30) | 14 G 2.5 | 18.1 | 490 |
| 14(50/30) | 16 G 2.5 | 18.5 | 553 |
| 14(50/30) | 20 G 2.5 | 20.5 | 677 |
| 14(50/30) | 24 G 2.5 | 23.6 | 850 |
| 14(50/30) | 25 G 2.5 | 23.6 | 888 |
| 14(50/30) | 27 G 2.5 | 24.2 | 918 |
| 14(50/30) | 30 G 2.5 | 24.7 | 983 |
| 14(50/30) | 37 G 2.5 | 25.9 | 1193 |
| 12(56/28) | 7 G 4 | 15.5 | 395 |
| 10(84/28) | 7 G 6 | 18.1 | 527 |
| 8(80/26) | 7 G 10 | 23.6 | 728 |
| 6(128/26) | 7 G 16 | 27.2 | 1043 |
