portuguese Standard Industrial Cables

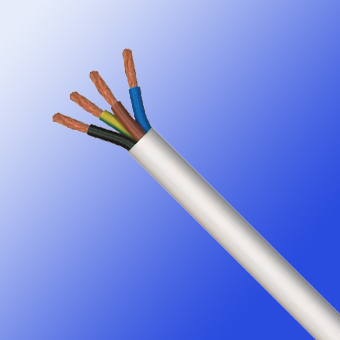

H05VV-F

Application and Description

H05VV-F cables are suited for medium mechanical stress in damp and wet environments such as refrigerators, washing machines, spin dryers and other appliances, as long as it meets applicable equipment specifications. H05VV-F cables are also suited for cooking and heating apparatus, provided that the cable does not come into direct contact with the hot parts of the apparatus or with any other heat source. Further applications of this cable include: Fixed installation in furniture, partition walls, decorative covering, and in the hollow spaces of prefabricated building parts. H05VV-F cables are not suitable for outdoor use, industrial (except clothing manufacture) or farming applications. Max operating voltage in single or three phase system is Uo/U 318/550 volts. In a direct system, max operating voltage is Uo/U 413/825 volts.

Standard and Approval

NP2356/5

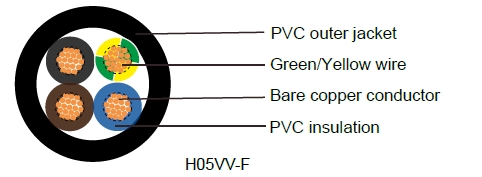

Cable Construction

- Bare copper fine wire conductor
- Stranded to DIN VDE 0295 cl. 5, BS 6360 cl. 5, IEC 60228 cl. 5 and HD 383
- PVC core insulation T12 to VDE-0281 Part 1
- Color coded to VDE-0293-308
- Green-yellow grounding (3 conductors and above)
- PVC outer jacket TM2

H05VV-F H05VV-F

Technical Characteristics

- Working voltage: 300/500 volts
- Test voltage: 2000 volts
- Flexing bending radius: 7.5 x Ø
- Static bending radius: 4 x Ø
- Flexing temperature: -5º C to +70º C
- Static temperature: -40º C to +70º C
- Short circuit temperature: +160º C
- Flame retardant: IEC 60332.1
- Insulation resistance: 20 MΩ x km

Industrial Cables Industrial Cables

Cable Parameter

AWG No. of Cores x Nominal Cross Sectional Area # x mm² Nominal Thickness of Insulation mm Nominal Thickness of Sheath mm Nominal Overall Diameter mm Nominal Copper Weight kg/Km Nominal Weight kg/Km
H05VV-F
18(24/32) 2 x 0.75 0.6 0.8 6.4 14.4 57
18(24/32) 3 x 0.75 0.6 0.8 6.8 21.6 68
18(24/32) 4 x 0.75 0.6 0.8 7.4 29 84
18(24/32) 5 x 0.75 0.6 0.9 8.5 36 106
17(32/32) 2 x 1.00 0.6 0.8 6.8 19 65
17(32/32) 3 x 1.00 0.6 0.8 7.2 29 79
17(32/32) 4 x 1.00 0.6 0.9 8.0 38 101
17(32/32) 5 x 1.00 0.6 0.9 8.8 48 123
16(30/30) 2 x 1.50 0.7 0.8 7.6 29 87
16(30/30) 3 x 1.50 0.7 0.9 8.2 43 111
16(30/30) 4 x 1.50 0.7 1.0 9.2 58 142
16(30/30) 5 x 1.50 0.7 1.1 10.5 72 176
14(30/50) 2 x 2.50 0.8 1.0 9.2 48 134
14(30/50) 3 x 2.50 0.8 1.1 10.1 72 169
14(30/50) 4 x 2.50 0.8 1.1 11.2 96 211
14(30/50) 5 x 2.50 0.8 1.2 12.4 120 262
12(56/28) 3 x 4.00 0.8 1.2 11.3 115 233
12(56/28) 4 x 4.00 0.8 1.2 12.5 154 292
12(56/28) 5 x 4.00 0.8 1.4 13.7 192 369
10(84/28) 3 x 6.00 0.8 1.1 13.1 181 328
10(84/28) 4 x 6.00 0.8 1.3 13.9 230 490

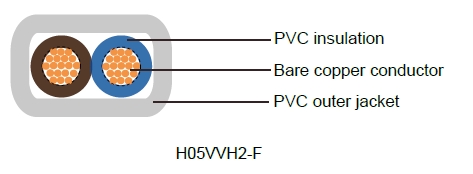

H05VVH2-F
18(24/32) 2 x 0.75 0.6 0.8 4.2 x 6.8 14.4 48
17(32/32) 2 x 1.00 0.6 0.8 4.4 x 7.2 19.2 57
