H1VV-U

APPLICATIONS:

H1VV-U cables are used for electricity supply in low voltage installation system, H1VV-U cables are suitable for installation in indoors and outdoors, in cable ducts, underground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.

STANDARD:

IEC 60502-1

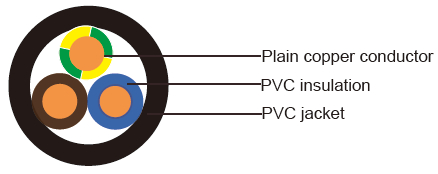

CONSTRUCTION:

H1VV-U

Conductor: Solid copper conductor, class 1 to IEC 60228
Insulation: PVC insulation
Colour Code :HD 308 S2
Over Sheath: Flexible black PVC outer jacket

PHYSICAL PROPERTIES:

Flexing bending radius: 15 x O Static bending radius: 12 x O
Flexing temperature: -5o C to +50o C
Fixed installation temperature: - 40o C to +70o C

ELECTRICAL PROPERTIES:

Working Voltage: 600/1000 volts
Test voltage: 3500 volts
Flame retardant: IEC 60332-1, EN 50265-2-1
Insulation resistance: >100 MO x km

PARAMETERS:

Nominal Cross Section Overall Diameter (Approx.) Cable Weight (Approx.) Nominal Cross Section Overall Diameter (Approx.) Cable Weight (Approx.)
mm^2 mm Kg/Km mm^2 mm Kg/Km
1x1.5 6.4 58 30x1.5 26 1020
1x2.5 6.8 71 40x1.5 29 1290
2x1.5 12 205 48x1.5 32 1520
2x2.5 13 250 61x1.5 35 1900
3x1.5 13 230 5x2.5 16 375
3x2.5 13.5 280 7x2.5 17 460
4x1.5 13.5 265 10x2.5 20 590
4x2.5 14.5 325 12x2.5 21 660
5x1.5 14.5 300 14x2.5 22 740
7x1.5 15.5 360 19x2.5 24 940
10x1.5 19 460 21x2.5 25 1030
12x1.5 19.5 510 24x2.5 27 1150
14x1.5 20 570 30x2.5 29 1370
19x1.5 22 710 40x2.5 32 1810
21x1.5 23 770 48x2.5 36 2130
24x1.5 25 870 61x2.5 39 2630
