Industrial Cables

portuguese Standard Industrial Cables

XV

APPLICATIONS:

XV cables are used for electricity supply in low voltage installation system, They are suitable for installation in indoors and outdoors, in cable ducts, underground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.

STANDARD:

IEC 60502-1 NP2363

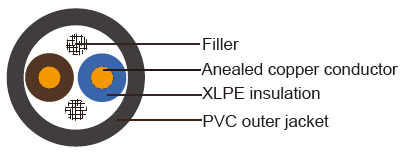

CONSTRUCTION:

XV



Conductor: Plain copper conductor, , class 1(<6mmsq)/class2(>6mmsq) to IEC 60228
Insulation: XLPE insulation
Colour Code :HD 308 S2
Filler: Not fibrous and not hygroscopic fill
Over Sheath: Flexible black PVC, type ST2 outer jacket

PHYSICAL PROPERTIES:

Minimum bending radius: 12 x O
Operation temperature range: -15 °C to 90 °C
Short-circuit temperature: 250 °C

ELECTRICAL PROPERTIES:

Working Voltage: 600/1000 volts
Test voltage: 3500 volts
Insulation resistance: 20 MO x km

PARAMETERS:

Nominal Cross Section Overall Diameter (Approx.) Cable Weight (Approx.) Nominal Cross Section Overall Diameter (Approx.) Cable Weight (Approx.)
mm^2 mm Kg/Km mm^2 mm Kg/Km
1 x 35 120 390 3 x 185 + 1 x 95 525 7810
1 x 50 135 515 3 x 240 + 1 x 120 590 10000
1 x 70 155 720 5 x 1,5 115 180
1 x 95 175 975 5 x 2,5 125 240
1 x 120 195 1225 5 x 4 135 330
1 x 150 210 1490 5 x 6 150 465
1 x 185 235 1855 5 x 10 180 685
1 x 240 265 2385 5 x 16 210 1020
1 x 300 285 2995 3 x 25 + 2G16 255 1440
1 x 400 320 3905 3 x 35 + 2G16 275 1785
1 x 500 360 4835 3 x 50 + 2G25 315 2415
2 x 1.5 95 115 3 x 70 + 2G35 360 3345
2 x 2.5 100 140 3 x 95 + 2G50 405 4480
2 x 4 110 185 3 x 120 + 2G70 465 5875
2 x 6 120 255 3 x 150 + 2G70 495 6835
2 x 10 145 365 3 x 185 + 2G95 555 8700
2 x 16 185 610 3 x 240 + 2G120 625 11125
2 x 25 215 890 5 x 1,5 110 180
2 x 35 235 1135 6 x 1,5 115 215
2 x 50 265 1475 7 x 1,5 115 220
3 x 1,5 100 130 8 x 1,5 132 265
3 x 2,5 105 170 10 x 1,5 143 280
3 x 4 115 225 12 x 1,5 147 320
3 x 6 125 295 14 x 1,5 155 360
3 x 10 150 455 16 x 1,5 162 405
3 x 16 195 745 19 x 1,5 171 460
3 x 25 230 1110 24 x 1,5 198 570
3 x 35 250 1440 30 x 1,5 21 685
3 x 50 280 1880 37 x 1,5 226 820
4 x 1,5 105 155 5 x 2,5 120 245
4 x 2,5 115 200 6 x 2,5 126 285
4 x 4 125 275 7 x 2,5 126 295
4 x 6 140 365 8 x 2,5 145 355
4 x 10 165 560 10 x 2,5 158 385
4 x 16 195 830 12 x 2,5 163 440
3 x 25 + 1 x 16 240 1280 14 x 2,5 171 500
3 x 35 + 1 x 16 260 1610 16 x 2,5 18 565
3 x 50 + 1 x 25 295 2150 19 x 2,5 189 650
3 x 70 + 1 x 35 335 3000 24 x 2,5 22 805
3 x 95 + 1 x 50 380 4015 30 x 2,5 233 975
3 x 120 + 1 x 70 435 5210 37 x 2,5 252 1180
3 x 150 + 1 x 70 470 6180
