      Type 1 1.1/1.1KV Collectively Screened

Applications

These individuallycopper screened cables are used for wiring of machines, or between machines and equipment where PVC is suitable

Standards

Type 1 1.1/1.1KV Collectively Screened

AS/NZS 1972:2006

AS/NZS 1125

AS/NZS 3808

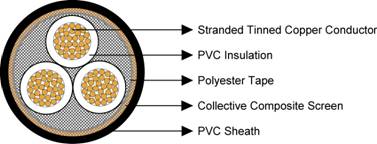

Construction

Conductors: Stranded copper conductor.

Insulation: PVC.

Bedding: Polyester tape.

Collective Composite Screen (earth conductor): Tinned annealed copper braiding interwove with polyester yarn.

Sheath: PVC sheath.

Dimensions and Weight

Number of Cores Nominal Conductor Area Strand Size Insulation Thickness Core screen Thickness of Sheath Nominal Overall Diameter Nominal Weight
Strand Size Area
of Screen
  mm² No/mm mm mm mm² mm mm kg/100m
Type 1 – Collectively Screened
2 1.5 30/0.25 0.8 0.20 2.3 0.8 9.2 12
3 1.5 30/0.25 0.8 0.20 2.5 0.8 9.7 15
4 1.5 30/0.25 0.8 0.20 2.6 0.8 10.5 18
6 1.5 30/0.25 0.8 0.20 3.4 0.8 12.6 25
16 1.5 30/0.25 0.8 0.20 5.1 1.0 18.7 55
30 1.5 30/0.25 0.8 0.25 8.8 1.3 24.6 96
