 Mining Cable
Type 210 1.1/1.1KV
Applications
These cables are mainly used for hand-held boring machines and drills.
Standards
AS/NZS 1802:2003
AS/NZS 1125
AS/NZS 3808
AS/NZS 5000.1

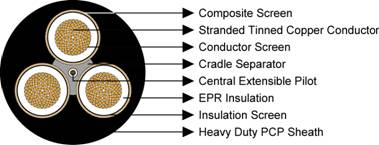

Construction
3×Conductors: Flexible stranded tinned annealed copper conductor.
Conductor Screen:Polyester barrier tape.
Insulation: EPR.
Insulation Screen:Semiconductive tape.
Composite Screen (earth conductor):Tinned annealed copper braiding interwove with polyester yarn.
Cradle Separator: Semiconductive PCP.
1×Central Extensible Pilot:EPR covered flexible stranded tinned copper conductor.
Sheath: Heavy duty PCP sheath.
Dimensions and Weight
| Nominal Conductor Area |
Strand Size |
Insulation Thickness |
Core screen |
Pilot Conductor |
Thickness of Sheath |
Nominal Overall Diameter |
Nominal Weight |
| Strand Size |
Area of Screen |
Strand Size |
Thickness of Covering |
| mm² |
No/mm |
mm |
No/mm |
mm² |
No/mm |
mm |
mm |
mm |
kg/100m |
| Type 210 |
| 1.5 |
30/0.25 |
1.4 |
7/0.25 |
5.2 |
24/0.20 |
0.8 |
3.0 |
23.7 |
83 |
| 2.5 |
50/0.25 |
1.5 |
7/0.25 |
5.8 |
24/0.20 |
0.8 |
3.0 |
25.1 |
92 |
|
