Mining Cable


Mining Cable

      Type 245 1.1 to 6.6KV

Applications

These very flexible cables are mainly used as longwall shearer cables, and also for continuous miners and peripheral longwall cables.Cable has 3 central pilots for earth continuity monitoring and for control circuits.

Standards

Type 245 1.1 to 6.6KV

AS/NZS 1802:2003

AS/NZS 1125

AS/NZS 3808

AS/NZS 5000.1

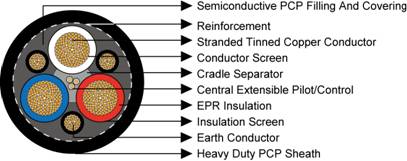

Construction

3×Conductors: Flexible stranded tinned annealed copper conductor.

Conductor Screen: 1.1/1.1kV - polyester barrier tape, 3.3/3.3kV andabove - polyester barrier tape and extruded semiconductive tape.

Insulation: EPR.

Insulation Screen:Semiconductive tape.

Cradle Separator: Semiconductive PCP.

Overall Core Screen: SemiconductivePCP filling andcovering.

3×Interstitial Earth Conductor: Semiconductive PCP insulated flexible stranded tinned copper conductor.

3×Central Extensible Pilot:EPR covered flexible stranded tinned copper conductor.

Textile Reinforcement: Open-weave braid reinforcement.

Sheath: Heavy duty PCP sheath.

Dimensions and Weight

Nominal Conductor Area Strand Size Insulation Thickness Earth Conductor Pilot Conductor Thickness of Sheath Including SC PCP Layer Nominal Overall Diameter Nominal Weight
Strand Size Thickness of Covering Strand Size Thickness of Covering
mm² No/mm mm No/mm mm No/mm mm mm mm kg/100m
Type 245.1
16 133/0.40 2.0 69/0.25 1.8 28/0.25 0.8 4.1 42.6 235
25 259/0.36 1.6 91/0.25 1.8 28/0.25 0.8 4.2 43.4 269
35 287/0.40 1.6 140/0.25 1.4 28/0.25 0.8 4.4 45.6 315
50 703/0.30 1.7 120/0.30 1.0 28/0.25 0.8 4.8 48.4 390
70 988/0.30 1.8 180/0.30 1.0 28/0.25 0.8 5.1 53.9 501
95 1332/0.30 2.0 150/0.30 1.0 28/0.25 0.8 5.6 60.4 630
120 1702/0.30 2.1 195/0.30 1.2 28/0.25 0.8 6.0 65.5 765
150 2146/0.30 2.3 235/0.30 1.2 28/0.25 0.8 6.3 70.5 915
Type 245.3
25 259/0.36 3.0 91/0.25 1.5 28/0.25 0.8 5.2 51.1 338
35 287/0.40 3.0 140/0.25 1.0 28/0.25 0.8 5.4 54.5 398
50 703/0.30 3.0 120/0.30 1.0 28/0.25 0.8 5.7 56.8 490
70 988/0.30 3.0 180/0.30 1.2 28/0.25 0.8 6.0 61.2 592
95 1332/0.30 3.0 235/0.30 1.2 28/0.25 0.8 6.4 66.6 739
120 1702/0.30 3.0 300/0.30 1.2 28/0.25 0.8 6.7 71.0 870
150 2146/0.30 3.0 375/0.30 1.2 28/0.25 0.8 7.0 75.2 1028
Type 245.6
50 703/0.30 5.0 120/0.30 1.4 28/0.25 0.8 6.7 67.2 635
70 988/0.30 5.0 180/0.30 1.4 28/0.25 0.8 7.0 71.7 755
95 1332/0.30 5.0 235/0.30 1.4 28/0.25 0.8 7.4 77.1 905
120 1702/0.30 5.0 300/0.30 1.4 28/0.25 0.8 7.7 81.3 1050
150 2146/0.30 5.0 375/0.30 1.4 28/0.25 0.8 8.0 85.8 1210
