        Type SHD-GC Three-Conductor Portable Power Cable, CPE Sheath 2kV

Applications

These heavy duty cables are designed for applications such as longwall shearers, continuous miners, loaders, drills, conveyors, pumps and mobile equipment where grounding conductors, a ground check conductor and metallic shielding are required.

Standards

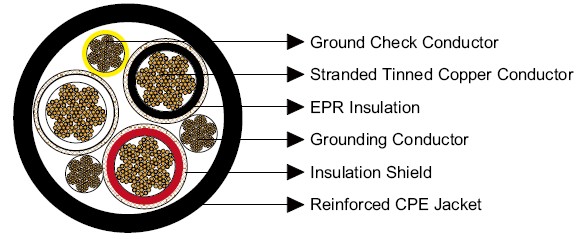

Construction

Type SHD-GC Three-Conductor Portable Power Cable, CPE Sheath 2kV

Options:

Other jacket materials such as CSP/PCP/NBR/PVC are available upon request.

Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.

Mechanical and Thermal Properties

Dimensions and Weight:

Construction No. of Strands Grounding Conductor Size Ground Check Conductor Size Nominal Insulation Thickness Nominal Sheath Thickness Nominal Overall Diameter Nominal Weight Ampacity
No. of cores×AWG/kcmil - AWG/kcmil AWG/kcmil inch mm inch mm inch mm lbs/kft kg/km A
3×6 133 10 10 0.07 1.8 0.155 3.9 1.29 32.8 1130 1682 93
3×4 259 8 10 0.07 1.8 0.155 3.9 1.40 35.6 1460 2173 122
3×3 259 7 10 0.07 1.8 0.170 4.3 1.51 38.3 1680 2500 140
3×2 259 6 10 0.07 1.8 0.170 4.3 1.59 40.4 1990 2961 159
3×1 259 5 8 0.08 2.0 0.190 4.8 1.76 44.7 2385 3549 184
3×1/0 266 4 8 0.08 2.0 0.190 4.8 1.86 47.2 2765 4115 211
3×2/0 329 3 8 0.08 2.0 0.205 5.2 2.00 50.8 3255 4844 243
3×3/0 418 2 8 0.08 2.0 0.205 5.2 2.13 54.1 3890 5789 279
3×4/0 532 1 8 0.08 2.0 0.220 5.6 2.31 58.7 4720 7024 321
3×250 627 1/0 6 0.095 2.4 0.220 5.6 2.51 63.8 5460 8125 355
3×300 741 1/0 6 0.095 2.4 0.235 6.0 2.68 68.1 6395 9517 398
3×350 888 2/0 6 0.095 2.4 0.235 6.0 2.81 71.4 7280 10834 435
3×500 1221 4/0 6 0.095 2.4 0.265 6.7 3.19 81.0 9820 14614 536

Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
