        Type SHD-PCG Three-Conductor Portable Power Cable 5kV

Applications

These heavy duty cables are designed for use on longwall shearers, where three shielded power conductors, three unshielded control conductors, and a grounding conductor are required.

Standards

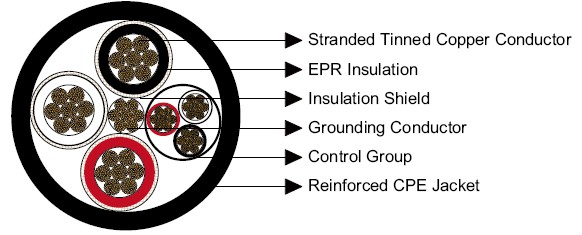

Construction

Type SHD-PCG Three-Conductor Portable Power Cable 5kV

Options:

Other jacket materials such as CSP/PCP/NBR/PVC are available upon request.

Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.

Mechanical and Thermal Properties

Dimensions and Weight:

Construction No. of Strands Grounding Conductor Size Control Conductor Size Nominal Insulation Thickness Nominal Sheath Thickness Nominal Overall Diameter Nominal Weight Ampacity
No. of cores×AWG/kcmil - AWG/kcmil AWG/kcmil inch mm inch mm inch mm lbs/kft kg/km A
3×2 259 4 8 0.11 2.8 0.205 5.2 2.03 51.5 2769 4120 159
3×1 259 4 8 0.11 2.8 0.220 5.6 2.12 53.8 2825 4205 184
3×1/0 266 3 8 0.11 2.8 0.220 5.6 2.27 57.7 3571 5313 211
3×2/0 329 2 8 0.11 2.8 0.220 5.6 2.45 62.2 3774 5615 243
3×3/0 418 1 8 0.11 2.8 0.235 6.0 2.58 65.3 4752 7070 279
3×4/0 532 1/0 6 0.11 2.8 0.250 6.4 2.76 69.9 6030 8971 321

Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
