      (N)SSHOEU 0.6/1kV Heavy Duty Flexible Cable

Applications

These cables are used for connection of mobileequipment and machines under very high mechanicalloads in dry and damp areas, outdoors and in explosionhazard areas, particularly in mining and at quarries andbuilding sites.

Standards

Based on VDE 0250 Part 812

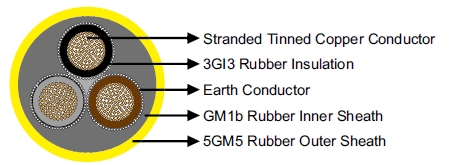

Construction

(N)SSHOEU 0.6/1kV Heavy Duty Flexible Cable

Conductors: Flexible stranded copper conductor, class 5 according to DIN VDE 0295.
Insulation:
Rubber type 3GI3.
Pilot Cores (optional):Tinned copper conductor with EPR insulation.
Earth Conductor: Spiral of tinnedcopper wires.
InnerSheath: Rubber type GM1b.
Outer Sheath: Rubber type 5GM5.

Dimensions and Weight

Number of Cores×Nominal Cross Section Minimium Overall Diameter Maximum Overall Diameter Nominal Weight
No. ×mm² mm mm kg/km
3x2.5+3x2.5/3E 14.0 17.0 300
3x6+3x6/3E 18.0 21.0 580
3x10+3x10/3E 21.0 25.0 860
3x2.5+3x2.5/3E+3x1.5 17.0 20.0 450
3x6+3x6/3E+3x1.5 18.0 22.0 660
3x10+3x10/3E+3x2.5 21.0 26.0 950
3x25+3x16/3E+3x2.5 28.0 33.0 1660
3x35+3x16/3E+3x2.5 30.0 35.0 1970
3x50+3x25/3E+3x2.5 36.0 41.0 2840
3x70+3x35/3E+3x2.5 41.0 46.0 3700
3x95+3x50/3E+3x2.5 47.0 52.0 4950
3x120+3x70/3E+3x2.5 52.0 57.0 5650
3x150+3x70/3E+3x2.5 58.0 63.0 6520
