      NTSCGERLWOEU 3.6/6kV Flexible Submersible Cable

Applications

These cables are used for permanent operation inwater where the cable is required to have additionalmechanical protection.

Standards

VDE 0250 Part 813

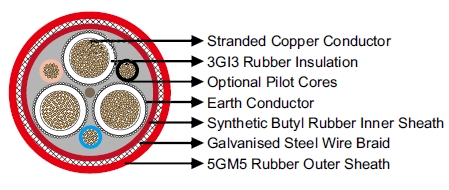

Construction

NTSCGERLWOEU 3.6/6kV Flexible Submersible Cable

Conductors: Flexible stranded tinned copper conductor, class 5 according to DIN VDE 0295.
Inner Conductor Layer:
Special rubber compound, conductive.
Insulation:
Rubbertype 3GI3.
Outer Conductor Layer:Special rubber, conductive, easy strippable.
Pilot Cores (optional):C
opper conductor with EPR insulation.
Earth Conductor: Spiral of tinned annealed copper wires.
InnerSheath: Waterproof synthetic butyl rubber.
Armouring: Braid of galvanised steel strands.
Outer Sheath: Rubber type 5GM5.

Dimensions and Weight

Number of Cores×Nominal Cross Section Minimium Overall Diameter Maximum Overall Diameter Nominal Weight
No.×mm² mm mm kg/km
3×35+3×16/3E 55.0 60.0 4600
3×50+3×25/3E 59.0 67.0 5600
3×70+3×35/3E 64.0 70.0 6700
3×95+3×50/3E 68.0 75.0 7900
3×120+3×70/3E 75.0 80.0 9980
