Mining Cable
NTSCGEWOEU Flexible Medium-Voltage Trailing Cable
Applications
These cables are used as power supply or connection cables for large material handling machines, e.g. excavators in open-cast mines subject to extremely high mechanical stresses. Particularly suitable for applications in which abrasion and chaffing stresses are to be expected in trailing operation.
Standards
VDE 0250 Part 813

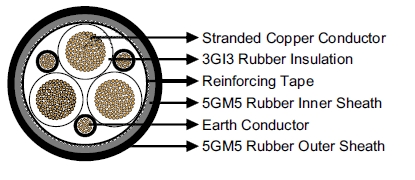

Construction
Conductors: Flexible stranded tinned copper conductor, class 5 according to DIN VDE 0295.
Inner Conductor Layer: Semiconductive layer.
Insulation: Rubbertype 3GI3.
Outer Conductor Layer:Semiconductive layer.
Earth Conductor: Split into three in theouter interstices or Individual concentric distributed over core insulating coverings (coding…../3E).
Reinforcing Tape: Extremely tear-resistant reinforcing tape.
InnerSheath: Rubber type 5GM5, abrasion and tear resistant, oil and ozone resistant.
- Outer Sheath: Rubber type 5GM5, abrasion and tear resistant, oil and ozone resistant, inseparably bonded with inner sheath.
Dimensions and Weight
1.8/3kV
| Number of Cores×Nominal Cross Section | Minimium Overall Diameter | Maximum Overall Diameter | Nominal Weight |
| No.×mm² | mm | mm | kg/km |
| 3×25+3×25/3 | 38.5 | 41.5 | 2470 |
| 3×35+3×25/3 | 42.9 | 45.9 | 3080 |
| 3×50+3×25/3 | 46.1 | 49.1 | 3750 |
| 3×70+3×35/3 | 49.7 | 53.7 | 4690 |
| 3×95+3×50/3 | 57.4 | 61.4 | 6210 |
| 3×120+3×70/3 | 61.2 | 65.2 | 7430 |
| 3×150+3×70/3 | 66.7 | 70.7 | 8900 |
| 3×185+3×95/3 | 70.6 | 74.6 | 10330 |
| 3×25+2×25/2+1×10ST | 40.3 | 44.3 | 2470 |
| 3×35+2×25/2+1×10ST | 42.9 | 46.9 | 3080 |
| 3×50+2×25/2+1×10ST | 46.8 | 50.8 | 3750 |
| 3×70+2×35/2+1×10ST | 51.5 | 55.5 | 4690 |
| 3×95+2×50/2+1×10ST | 57.4 | 62.4 | 6210 |
| 3×120+2×70/2+1×10ST | 63.6 | 68.6 | 7430 |
| 3×150+2×70/2+1×10ST | 67.2 | 72.2 | 8900 |
| 3×185+2×95/2+1×10ST | 70.2 | 75.2 | 10330 |
3.6/6kV
| Number of Cores×Nominal Cross Section | Minimium Overall Diameter | Maximum Overall Diameter | Nominal Weight |
| No.×mm² | mm | mm | kg/km |
| 3×25+3×25/3 | 44.6 | 47.6 | 3080 |
| 3×35+3×25/3 | 47.6 | 50.6 | 3590 |
| 3×50+3×25/3 | 52.4 | 56.4 | 4520 |
| 3×70+3×35/3 | 56.3 | 60.3 | 5520 |
| 3×95+3×50/3 | 59.9 | 63.9 | 6580 |
| 3×120+3×70/3 | 65.6 | 69.6 | 8110 |
| 3×150+3×70/3 | 69.3 | 73.3 | 9320 |
| 3×185+3×95/3 | 73.2 | 77.2 | 10780 |
| 3×25+2×25/2+1×10ST | 45.0 | 49.0 | 3200 |
| 3×35+2×25/2+1×10ST | 47.6 | 51.6 | 3680 |
| 3×50+2×25/2+1×10ST | 53.0 | 57.0 | 4640 |
| 3×70+2×35/2+1×10ST | 56.2 | 60.2 | 5550 |
| 3×95+2×50/2+1×10ST | 61.8 | 66.8 | 6650 |
| 3×120+2×70/2+1×10ST | 66.1 | 71.1 | 8160 |
| 3×150+2×70/2+1×10ST | 69.8 | 74.8 | 9340 |
| 3×185+2×95/2+1×10ST | 74.6 | 79.6 | 10890 |
6/10 kV
| Number of Cores×Nominal Cross Section | Minimium Overall Diameter | Maximum Overall Diameter | Nominal Weight |
| No.×mm² | mm | mm | kg/km |
| 3×25+3×25/3 | 46.4 | 49.4 | 3270 |
| 3×35+3×25/3 | 49.1 | 53.1 | 3800 |
| 3×50+3×25/3 | 54.1 | 58.1 | 4750 |
| 3×70+3×35/3 | 58.0 | 62.0 | 5750 |
| 3×95+3×50/3 | 61.7 | 65.7 | 6830 |
| 3×120+3×70/3 | 67.4 | 71.4 | 8380 |
| 3×150+3×70/3 | 71.0 | 75.0 | 9620 |
| 3×185+3×95/3 | 76.7 | 80.7 | 11430 |
| 3×25+2×25/2+1×10ST | 46.8 | 50.8 | 3410 |
| 3×35+2×25/2+1×10ST | 50.9 | 54.9 | 3890 |
| 3×50+2×25/2+1×10ST | 54.5 | 58.9 | 4860 |
| 3×70+2×35/2+1×10ST | 58.0 | 62.0 | 5780 |
| 3×95+2×50/2+1×10ST | 63.5 | 68.5 | 6920 |
| 3×120+2×70/2+1×10ST | 67.8 | 72.8 | 8450 |
| 3×150+2×70/2+1×10ST | 71.5 | 76.5 | 9620 |
| 3×185+2×95/2+1×10ST | 76.3 | 81.3 | 10980 |
8.7/15 kV
| Number of Cores×Nominal Cross Section | Minimium Overall Diameter | Maximum Overall Diameter | Nominal Weight |
| No.×mm² | mm | mm | kg/km |
| 3×25+3×25/3 | 52.6 | 56.6 | 4040 |
| 3×35+3×25/3 | 55.6 | 59.6 | 4630 |
| 3×50+3×25/3 | 58.9 | 62.9 | 5370 |
| 3×70+3×35/3 | 64.5 | 68.5 | 6720 |
| 3×95+3×50/3 | 68.2 | 72.2 | 7850 |
| 3×120+3×70/3 | 72.1 | 76.1 | 9130 |
| 3×150+3×70/3 | 77.6 | 81.6 | 10750 |
| 3×185+3×95/3 | 81.5 | 85.5 | 12290 |
| 3×25+2×25/2+1×10ST | 53.0 | 57.0 | 4130 |
| 3×35+2×25/2+1×10ST | 55.6 | 59.6 | 4740 |
| 3×50+2×25/2+1×10ST | 59.3 | 63.3 | 5470 |
| 3×70+2×35/2+1×10ST | 64.6 | 68.6 | 6820 |
| 3×95+2×50/2+1×10ST | 68.3 | 73.3 | 7950 |
| 3×120+2×70/2+1×10ST | 74.4 | 79.4 | 9240 |
| 3×150+2×70/2+1×10ST | 78.1 | 83.1 | 10860 |
| 3×185+2×95/2+1×10ST | 81.1 | 86.1 | 12400 |
12/20 kV
| Number of Cores×Nominal Cross Section | Minimium Overall Diameter | Maximum Overall Diameter | Nominal Weight |
| No.×mm² | mm | mm | kg/km |
| 3×25+3×25/3 | 56.9 | 60.9 | 4620 |
| 3×35+3×25/3 | 59.9 | 63.9 | 5220 |
| 3×50+3×25/3 | 65.0 | 69.0 | 6300 |
| 3×70+3×35/3 | 68.9 | 72.9 | 7410 |
| 3×95+3×50/3 | 72.5 | 76.5 | 8560 |
| 3×120+3×70/3 | 78.2 | 82.2 | 10260 |
| 3×150+3×70/3 | 81.9 | 85.9 | 11570 |
| 3×185+3×95/3 | 87.4 | 92.4 | 13530 |
| 3×25+2×25/2+1×10ST | 57.3 | 61.3 | 4770 |
| 3×35+2×25/2+1×10ST | 59.9 | 63.9 | 5340 |
| 3×50+2×25/2+1×10ST | 65.4 | 69.4 | 6460 |
| 3×70+2×35/2+1×10ST | 68.8 | 72.8 | 7450 |
| 3×95+2×50/2+1×10ST | 74.4 | 79.4 | 8680 |
| 3×120+2×70/2+1×10ST | 78.7 | 83.7 | 10370 |
| 3×150+2×70/2+1×10ST | 82.2 | 87.2 | 11650 |
| 3×185+2×95/2+1×10ST | 87.0 | 92.0 | 13090 |
14/25kV
| Number of Cores×Nominal Cross Section | Minimium Overall Diameter | Maximum Overall Diameter | Nominal Weight |
| No.×mm² | mm | mm | kg/km |
| 3×25+2×25/2+1×10ST | 64.7 | 68.7 | 5940 |
| 3×35+2×25/2+1×10ST | 67.3 | 71.3 | 6470 |
| 3×50+2×25/2+1×10ST | 71.0 | 75.0 | 7300 |
| 3×70+2×35/2+1×10ST | 75.2 | 80.2 | 8800 |
| 3×95+2×50/2+1×10ST | 80.0 | 85.0 | 10050 |
| 3×120+2×70/2+1×10ST | 85.9 | 90.9 | 11470 |
| 3×150+2×70/2+1×10ST | 89.6 | 94.6 | 13210 |
| 3×185+2×95/2+1×10ST | 92.6 | 97.6 | 14860 |
18/30kV
| Number of Cores×Nominal Cross Section | Minimium Overall Diameter | Maximum Overall Diameter | Nominal Weight |
| No.×mm² | mm | mm | kg/km |
| 3×25+3×25/3 | 69.5 | 73.5 | 6680 |
| 3×35+3×25/3 | 72.5 | 76.5 | 7380 |
| 3×50+3×25/3 | 77.6 | 81.6 | 8460 |
| 3×70+3×35/3 | 81.5 | 85.5 | 9690 |
| 3×95+3×50/3 | 84.9 | 89.9 | 10960 |
| 3×120+3×70/3 | 90.6 | 95.6 | 12830 |
| 3×150+3×70/3 | 94.3 | 99.3 | 14250 |
| 3×185+3×95/3 | 100.0 | 105.0 | 16390 |
| 3×25+2×25/2+1×10ST | 69.9 | 73.9 | 7100 |
| 3×35+2×25/2+1×10ST | 72.6 | 76.6 | 7540 |
| 3×50+2×25/2+1×10ST | 78.0 | 82.0 | 8680 |
| 3×70+2×35/2+1×10ST | 80.4 | 85.4 | 9760 |
| 3×95+2×50/2+1×10ST | 86.8 | 91.8 | 11100 |
| 3×120+2×70/2+1×10ST | 91.1 | 96.1 | 12980 |
| 3×150+2×70/2+1×10ST | 94.8 | 99.8 | 14350 |
| 3×185+2×95/2+1×10ST | 99.6 | 104.6 | 15870 |
