      NTSKCGERLOEU Medium-Voltage Coal Cutter Cable

Applications

These cables are used for the connection of mobile electrical equipment inunderground mines, e.g. for coal-cutting machines,especially for the use in bretby chains with extremebending loads under low tensile stress.

Standards

VDE 0250 Part 813

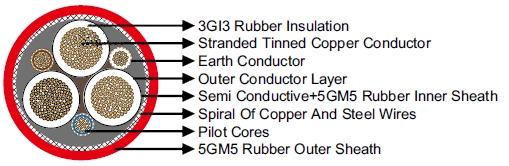

Construction

NTSKCGERLOEU Medium-Voltage Coal Cutter Cable

Conductors: Flexible stranded tinned copper conductor.
Insulation:
Heatresistant3GI3 rubber based on EPR.
Outer Conductor Layer (for 3.6/6kV): Easy strippable outer conductive layer.
Pilot Cores:Copper/steel conductor capable ofexpansion and compression with EPRrubber insulation.
Earth Conductor: Spiral of tinnedcopper wires and a conductive tape.
InnerSheath: 2 layer design, semi conductive rubber + Rubber type 5GM5.
Armour: Spiral of steel wires,embedded in the outer sheath, fiberglas tape which preventssheath exchanging.
Outer Sheath: Rubber type 5GM5, abrasion and tear resistant, oil resistant and flame retardant.

Dimensions and Weight

1.8/3 (3.6) kV

Number of Cores×Nominal Cross Section Minimium Overall Diameter Maximum Overall Diameter Nominal Weight
No.×mm² mm mm kg/km
3×35+3×(1.5ST+25/3)+UEL 44.0 49.0 3900
3×50+3×(1.5ST+25/3)+UEL 50.0 55.0 5100
3×70+3×(1.5ST+35/3)+UEL 52.0 56.0 6200
3×95+3×(1.5ST+50/3)+UEL 58.0 62.0 7500
3×120+3×(1.5ST+70/3)+UEL 64.0 70.0 9350

3.6/6 (7.2) kV

Number of Cores×Nominal Cross Section Minimium Overall Diameter Maximum Overall Diameter Nominal Weight
No.×mm² mm mm kg/km
3×35+3×(1.5ST+25/3)+UEL 49.0 54.0 5800
3×50+3×(1.5ST+25/3)+UEL 56.0 61.0 6100
3×70+3×(1.5ST+35/3)+UEL 57.0 62.0 6700
3×95+3×(1.5ST+50/3)+UEL 62.0 66.0 8000
3×120+3×(1.5ST+70/3)+UEL 67.0 71.0 10200
