IEC 60502-1 Cables

600/1000V, XLPE Insulated Cables according to IEC 60502-1

  600/1000V, XLPE Insulated Cables according to IEC 60502-1(armoured)

Application:

These cables are used for electricity supply in low voltage installation system, They are suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.

Construction:

ConductorsCopper or Aluminium conductor, round standed or Shaped, Class 2 to IEC 60228, BS EN 60228. For smaller sizes, a solid round conductor, Class 1 as per IEC 60228, BS EN 60228 can also be supplied upon request.

InsulationXLPE material and thickness shall be as per IEC 60502 or BS 5467 rated for 90°C continuous operation.

Colour Code

Colour Code (1) :



1 Core :

Red or Black



2 Cores

:

Red, Black



3 Cores

:

Red, Yellow, Blue



4 Cores

:

Red, Yellow, Blue, Black



5 Cores

:

Red, Yellow, Blue, Black, Green



Above 5 Cores :

Black Cores with White numerals



Colour Code (2) :





1 Core :

Brown or Blue



2 Cores

:

Brown or Blue



3 Cores

:

Brown, Black, Grey



4 Cores

:

Blue, Brown, Black, Grey



5 Cores

:

Green/Yellow, Blue, Brown, Black, Grey



Above 5 Cores :

Black Cores with White numerals

Assembly / Two, Three or Four insulated conductors are laid-up together with non-hygroscopic fillers
Inner Sheath and the assembly is bedded with an extruded layer of PVC. In case of non-armoured cables, this layer may be omitted
Armour Aluminum/Galvanized Steel Wires applied helically over the bedding as per IEC 60502 or as per BS 5467, BS 6346. Single core cables shall be Aluminium wire armour. Aluminum/Steel Tapes applied helically over the bedding of multi-core cables as per IEC 60502.
Outer Sheath Outer sheath shall be of Extruded PVC Type ST2 as per IEC 60502-1 or Type 9 as BS 6346/5467. Special type of PVC sheathing material such as Fire Retardant PVC, Anti-Termite PVC, Anti-Rodent PVC, Sunlight resistant PVC, Oil Resistant PVC are available on special request. Also, special sheathing materials such as LLDPE, MDPE, HDPE, LSF, CPE are available on request.

Fire Cables can be supplied with special flame retardant PVC outer sheath to comply with
Performance the flame test requirements of IEC 60332-3-22, IEC 60332-3-23 and IEC 60332-3-24,
of Cable can also supply cables with Low Smoke Halogen Free (LSHF) material according to IEC
Sheaths 60502-1, BS 7211, BS 6724 or other equivalent standards.

Cable Parameters:

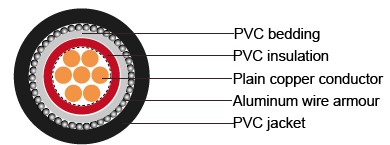

Single core( aluminum wire armoured)

Nominal Area

ApproxConductor Diameter

Nominal Insulation thickness

Nominal beddingthickness

Nominal Alum Wire dia.

Nominal Sheath thickness

Approx.Overall Diameter

Approx.Weight

mm²

mm

mm

mm

mm

mm

mm

Kg/Km

1x50

8.8

1

1

1.25

1.8

19.5

730

1x70

10.6

1.1

1

1.25

1.8

21.5

970

1x95

12.4

1.1

1

1.6

1.8

24

1220

1x120

14

1.2

1

1.6

1.8

25.5

1520

1x150

15.5

1.4

1

1.6

1.8

27.5

1920

1x185

17.4

1.6

1

1.6

1.8

30

2320

1x240

20.3

1.7

1

1.6

1.9

33

2920

1x300

22.7

1.8

1

1.6

1.9

35

3650

1x400

25.4

2

1.2

2

2.1

40.5

4670

1x500

28.8

2.2

1.2

2

2.2

44.5

5870

1x630

30.4

2.4

1.2

2

2.3

49

7360

1x800

2.6

1.4

2.5

2.5

55.5

9360

1x1000

2.8

1.4

2.5

2.7

61

11350

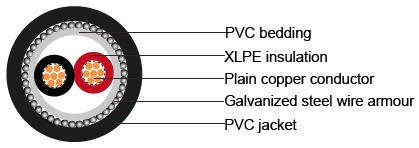

Two cores(Galvanized steel wire armoured)

Nominal Area

ApproxConductor Diameter

Nominal Insulation thickness

Nominal beddingthickness

Nominal Steel Wire dia.

Nominal Sheath thickness

Approx.Overall Diameter

Approx.Weight

mm²

mm

mm

mm

mm

mm

mm

Kg/Km

2x1.5

1.6

0.7

1

0.9

1.8

13.5

360

2x2.5

2

0.7

1

0.9

1.8

14.5

405

2x4

2.6

0.7

1

0.9

1.8

15.8

470

2x6

3.1

0.7

1

0.9

1.8

17

505

2x10

4

0.7

1

1.25

1.8

19.3

900

2x16

5

0.7

1

1.25

1.8

21.2

950

2x25

6.3

0.9

1

1.6

1.8

24

1205

2x35

7.4

0.9

1

1.6

1.8

24.8

1800

2x50

8.8

1

1

1.6

1.8

26

1850

2x70

10.6

1.1

1

2

2

29

2335

2x95

12.4

1.1

1.2

2

2.1

33.2

3165

2x120

14

1.2

1.2

2

2.3

36.1

3750

2x150

15.5

1.4

1.2

2.5

2.3

39.3

4410

2x185

17.4

1.6

1.3

2.5

2.5

44.8

5710

2x240

20.3

1.7

1.4

2.5

2.7

53.5

7150

2x300

22.5

1.8

1.5

2.5

2.9

58

8565

2x400

25.4

2

1.6

2.5

3.1

63

10695

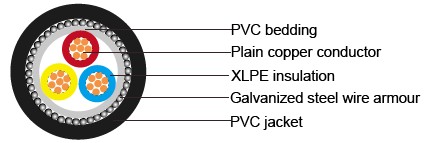

Three cores(Galvanized steel wire armoured)

Nominal Area

ApproxConductor Diameter

Nominal Insulation thickness

Nominal beddingthickness

Nominal Steel Wire dia.

Nominal Sheath thickness

Approx.Overall Diameter

Approx.Weight

mm²

mm

mm

mm

mm

mm

mm

Kg/Km

3x1.5

1.6

0.7

1.2

0.9

1.8

15

380

3x2.5

2

0.7

1.2

0.9

1.8

15.5

400

3x4

2.6

0.7

1.2

0.9

1.8

16.5

460

3x6

3.1

0.7

1.2

0.9

1.8

18

540

3x10

4

0.7

1.2

0.9

1.8

19.5

750

3x16

5

0.7

1.2

1.25

1.8

22.5

1000

3x25

6.3

0.9

1.2

1.6

1.8

26

1510

3x35

7.4

0.9

1.2

1.6

1.8

28

1950

3x50

8.8

1

1.2

1.6

1.9

32

2350

3x70

10.6

1.1

1.2

2

2

35

3230

3x95

12.4

1.1

1.2

2

2.1

39

4050

3x120

14

1.2

1.2

2

2.3

43

5230

3x150

15.5

1.4

1.4

2.5

2.4

47

6750

3x185

17.4

1.6

1.4

2.5

2.6

52

8230

3x240

20.3

1.7

1.5

2.5

2.7

59

10510

3x300

22.5

1.8

1.6

2.5

2.9

64

13210

3x400

25.4

2

1.6

2.5

3.2

74

16100

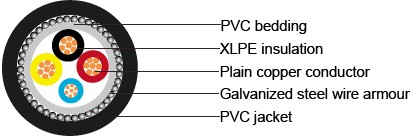

Three cores+1(Galvanized steel wire armoured)

Nominal Area

ApproxConductor Diameter

Nominal Insulation thickness

Nominal beddingthickness

Nominal Steel Wire dia.

Nominal Sheath thickness

Approx.Overall Diameter

Approx.Weight

mm²

(3) mm

(1) mm

(3) mm

(1) mm

mm

mm

mm

mm

Kg/Km

3x 16/10

5

4

0.7

0.7

1

1.6

1.8

25.5

1550

3x 25/16

6.3

5

0.9

0.7

1

1.6

1.8

27.5

2010

3x 35/16

7.4

5

0.9

0.7

1

1.6

1.8

29

2375

3x 50/25

8.8

6.3

1

0.9

1

1.6

2

33

3100

3x 70/35

10.6

7.4

1.1

0.9

1.2

2

2.1

38

4290

3x 95/50

12.4

8.8

1.1

1

1.2

2

2.3

43.5

5540


Nominal Area

ApproxConductor Diameter

Nominal Insulation thickness

Nominal beddingthickness

Nominal Steel Wire dia.

Nominal Sheath thickness

Approx.Overall Diameter

Approx.Weight

mm²

(3) mm

(1) mm

(3) mm

(1) mm

mm

mm

mm

mm

Kg/Km

3x120/70

14

10.6

1.2

1.1

1.2

2

2.4

49

7150

3x150/70

15.5

10.6

1.4

1.1

1.4

2.5

2.5

52

8330

3x185/95

17.4

12.4

1.6

1.1

1.4

2.5

2.7

57.2

10110

3x240/120

20.3

14

1.7

1.2

1.6

2.5

3

64

12740

3x300/150

22.7

15.5

1.8

1.4

1.6

2.5

3

69.8

15430

3x400/185

25.4

17.4

2

1.6

1.6

3.15

3.3

78.6

19990

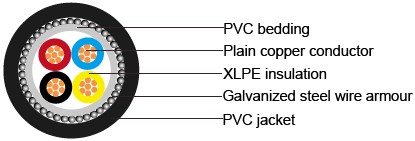

Four cores(Galvanized steel wire armoured)

Nominal Area

ApproxConductor Diameter

Nominal Insulation thickness

Nominal beddingthickness

Nominal Steel Wire dia.

Nominal Sheath thickness

Approx.Overall Diameter

Approx.Weight

mm²

mm

mm

mm

mm

mm

mm

Kg/Km

4x1.5

1.6

0.7

1

0.9

1.8

15

415

4x2.5

2

0.7

1

0.9

1.8

17.5

490

4x4

2.6

0.7

1

0.9

1.8

19

600

4x6

3.1

0.7

1

0.9

1.8

20

730

4x10

4

0.7

1

1.25

1.8

23

970

4x16

5

0.7

1

1.6

1.8

26

1520

4x25

6.3

0.9

1

1.6

1.8

29

2010

4x35

7.4

0.9

1

1.6

1.9

31

2560

4x50

8.8

1

1

1.6

2.1

36

3350

4x70

10.6

1.1

1.2

2

2.2

40

4680

4x95

12.4

1.1

1.2

2

2.4

44

5710

4x120

14

1.2

1.4

2.5

2.5

50

7500

4x150

15.5

1.4

1.4

2.5

2.6

55

9010

4x185

17.4

1.6

1.4

2.5

2.8

61

10820

4x240

20.3

1.7

1.6

2.5

3.1

69

13630

4x300

22.7

1.8

1.6

2.5

3.2

75

16820

4x400

25.4

2

1.8

3.15

3.4

83

22230
