IEC 60502-1 Cables

600/1000V, XLPE Insulated and Lead Sheathed Cables according to IEC 60502-1

  600/1000V, XLPE Insulated and Lead Sheathed Cables according to IEC 60502-1(armoured)

Application:

These cables are used for electricity supply in low voltage installation system, They are suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage. The lead sheath brings an enhanced resistance to aromatic hydrocarbons.

Construction

ConductorsConductors shall be Round Stranded (Non-compacted or Compacted) or shaped, Class 2 as per IEC 60228. For smaller sizes up to and including 4 mm2, Solid Conductors, Class 1 to IEC 60228 can also be provided based on special request.
InsulationXLPE Insulation material and thickness shall be as per IEC 60502-1 rated for 90°C continuos operation. PVC Insulation material and thickness shall be as per IEC 60502-1 and BS 6346. PVC material shall be Type A as per IEC 60502-1 or TI1 as per BS 6346. PVC Insulation material as per SASO 1694 rated for 85°C continuous operation is also available upon special request.

Colour CodeColour Code (1) :
1 Core : Red or Black
2 Cores : Red, Black
3 Cores : Red, Yellow, Blue
4 Cores : Red, Yellow, Blue, Black
5 Cores : Red, Yellow, Blue, Black, Green
Above 5 Cores : Black Cores with White numerals
Colour Code (2) :
1 Core : Brown or Blue
2 Cores : Brown or Blue
3 Cores : Brown, Black, Grey
4 Cores : Blue, Brown, Black, Grey
5 Cores : Green/Yellow, Blue, Brown, Black, Grey
Above 5 Cores :
Assembly / Two, Three or Four insulated conductors are laid-up together with non-hygroscopic fillers Inner Sheath compatible with the insulation material and the assembly is bedded with an extruded layer of PVC. Lead Sheath Extruded lead Alloy Type "E" to BS 12548. Thickness of lead shall be as per IEC 60502-1. Cables with other thickness of Lead Sheath can also be provided based on

specific request.

ArmourGalvanized Steel Wires in accordance with IEC 60502-1 or BS 6346 or BS 5467 laid

helically over PVC bedding as per requirement. Galvanized Steel Tapes applied helically over PVC bedding in accordance with IEC 60502-1

Outer SheathOuter sheath shall be of Extruded PVC Type ST2 as per IEC 60502-1 or Type 9 as BS 6346/5467. Special type of PVC sheathing material such as Fire Retardant PVC, Anti-Termite PVC, Anti-Rodent PVC, Sunlight resistant PVC, Oil Resistant PVC are available on special request. Also, special sheathing materials such as LLDPE, MDPE, HDPE, LSF, CPE are available on request.

Cable Parameters:

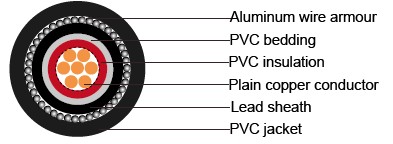

Single core( aluminum wire armoured)

Nominal Cross Section

Diameter of Conductor (Approx.)

Nominal Insulation Thickness

Nominal Lead Sheath Thickness

Nominal dia. of Alum. wire armour

Nominal PVC Sheath Thickness

Overall Diameter (Approx.)

Weight of Cable (Approx.)

mm²

mm

mm

mm

mm

mm

Kg/Km

Kg/Km

1x35 rm

7.4

0.9

1.2

1.3

1.8

24

1450

1x50 rm

8.8

1

1.2

1.3

1.8

26

1750

1x70 rm

10.6

1.1

1.2

1.6

1.8

28

2075

1x95 rm

12.4

1.1

1.2

1.6

1.8

30

2450

1x120 rm

14

1.2

1.2

1.6

1.8

32

2900


Nominal Cross Section

Diameter of Conductor (Approx.)

Nominal Insulation Thickness

Nominal Lead Sheath Thickness

Nominal dia. of Alum. wire armour

Nominal PVC Sheath Thickness

Overall Diameter (Approx.)

Weight of Cable (Approx.)

mm²

mm

mm

mm

mm

mm

Kg/Km

Kg/Km

1x150 rm

15.5

1.4

1.3

1.6

1.9

34

3300

1x185 rm

17.4

1.6

1.4

1.6

2

37

3950

1x240 rm

20.3

1.7

1.4

2

2.1

41

5000

1x300 rm

22.7

1.8

1.5

2

2.1

44

5825

1x400 rm

25.4

2

1.6

2

2.3

48

7150

1x500 rm

28.8

2.2

1.7

2.5

2.4

54

8900

1x630 rm

30.4

2.4

1.8

2.5

2.6

57

10600

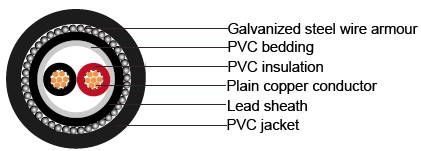

Two cores(Galvanized steel wire armoured)

Nominal Cross Section

Nominal Diameter of Conductor

Nominal Insulation Thickness

Nominal Lead Sheath Thickness

Nominal dia. of Steel wire armour

Nominal PVC Sheath Thickness

Overall Diameter (Approx.)

Weight of Cable (Approx.)

mm²

mm

mm

mm

mm

mm

Kg/Km

Kg/Km

2x2.5 rm

2

0.7

1.2

1.3

1.8

22

1325

2x4 rm

2.6

0.7

1.2

1.3

1.8

23

1450

2x6 rm

3.1

0.7

1.2

1.3

1.8

24

1600

2x10 rm

4

0.7

1.2

1.6

1.8

27

2025

2x16 rm

5

0.7

1.2

1.6

1.8

29

2350

2x25 rm

6.3

0.9

1.2

1.6

1.8

32

2900

2x35 rm

7.4

0.9

1.2

1.6

1.9

35

3350

2x50 rm

8.8

1

1.3

2

2

39

4375

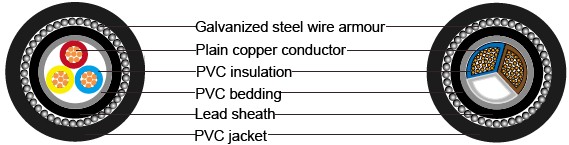

Three cores(Galvanized steel wire armoured)

Nominal Cross Section

Nominal Diameter of Conductor

Nominal Insulation Thickness

Nominal Lead Sheath Thickness

Nominal dia. of Steel wire armour

Nominal PVC Sheath Thickness

Overall Diameter (Approx.)

Weight of Cable (Approx.)

mm²

mm

mm

mm

mm

mm

Kg/Km

Kg/Km







Round conductor







3x1.5 rm

1.6

0.7



1.2

1.3

1.8

22

1275

3x2.5 rm

2

0.7



1.2

1.3

1.8

23

1400

3x4 rm

2.6

0.7



1.2

1.3

1.8

24

1550

3x6 rm

3.1

0.7



1.2

1.3

1.8

25

1725

3x10 rm

4

0.7



1.2

1.6

1.8

28

2175

3x16 rm

5

0.7



1.2

1.6

1.8

30

2575

3x25 rm

6.3

0.9



1.2

1.6

1.9

34

3250

3x35 rm

7.4

0.9



1.3

1.6

1.9

36

3750

3x50 rm

8.8

1



1.4

2

2.1

41

4900

3x70 rm

10.6

1.1



1.5

2

2.2

47

6225

3x95 rm

12.4

1.1



1.6

2.5

2.4

51

7650

3x120 rm

14

1.2



1.7

2.5

2.5

57

9550

3x150 rm

15.5

1.4



1.8

2.5

2.7

62

11300

3x185 rm

17.4

1.6



1.9

2.5

2.8

68

13375

3x240 rm

20.3

1.7



2.1

2.5

3.1

76

16700

3x300 rm

22.7

1.8



2.2

2.5

3.2

82

19725







Sectoral conductor







3x50 sm

-

1



1.3

2

2.1

39

4450

3x70 sm

-

1.1



1.4

2

2.2

43

5650

3x95 sm

-

1.1



1.5

2

2.4

47

6900

3x120 sm

-

1.2



1.6

2.5

2.5

52

8575

3x150 sm

-

1.4



1.7

2.5

2.7

57

10275

3x185 sm

-

1.6



1.8

2.5

2.8

61

12100

3x240 sm

-

1.7



2

2.5

3

67

14975

3x300 sm

-

1.8



2.1

2.5

3.2

73

17700

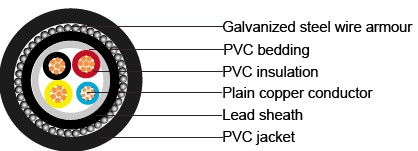

Three cores+1(Galvanized steel wire armoured)

Nominal Cross Section

Diameter of Conductor (Approx.)

Nominal Insulation Thickness

Nominal Lead Sheath Thickness

Nominal dia. of Steel Wire armour

Nominal PVC Sheath Thickness

Overall Diameter (Approx.)

Weight of Cable (Approx.)

mm²

(3) mm

(1) mm

(3) mm

(1) mm

mm

mm

mm

mm

Kg/Km

3x10 rm+6

5

3.1

0.7

0.7

1.2

1.8

1.6

29

2325

3x16 rm+10

6.3

4

0.7

0.7

1.2

1.8

1.6

31

2775

3x25 rm+16

7.4

5

0.9

0.7

1.2

1.9

1.6

35

3475

3x35 sm+16

-

5

0.9

0.7

1.2

2

1.6

35

3650

3x50 sm+25

-

6.3

1

0.9

1.3

2.1

2

40

4825

3x70 sm+35

-

7.4

1.1

0.9

1.4

2.3

2

45

6175

3x95 sm+50

-

8.8

1.1

1

1.5

2.4

2.5

50

8025

3x120 sm+70

-

10.6

1.2

1.1

1.6

2.6

2.5

54

9575

3x150 sm+70

-

10.6

1.4

1.1

1.7

2.7

2.5

59

11175

3x185 sm+95

-

12.4

1.6

1.1

1.9

2.9

2.5

64

13575

3x240 sm+120

-

14

1.7

1.2

2

3.1

2.5

70

16525

3x300 sm+150

-

15.5

1.8

1.4

2.2

3.4

3.15

78

20800

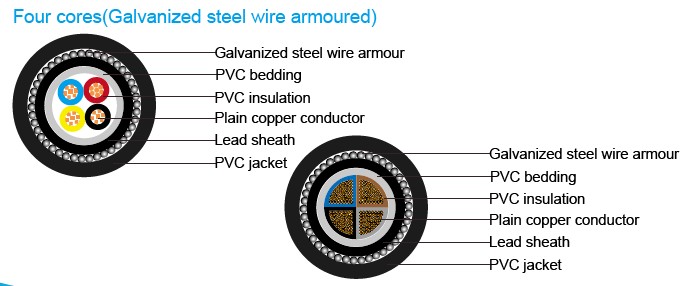

Nominal Cross Section

Nominal Diameter of Conductor

Nominal Insulation Thickness

Nominal Lead Sheath Thickness

Nominal dia. of Steel wire armour

Nominal PVC Sheath Thickness

Overall Diameter (Approx.)

Weight of Cable (Approx.)

mm²

mm

mm

mm

mm

mm

Kg/Km

Kg/Km

4x1.5 rm

1.6

0.7

1.2

1.3

1.8

23

1350

4x2.5 rm

2

0.7

1.2

1.3

1.8

24

1500

4x4 rm

2.6

0.7

1.2

1.3

1.8

25

1700

4x6 rm

3.1

0.7

1.2

1.6

1.8

27

2050

4x10 rm

4

0.7

1.2

1.6

1.8

29

2425

4x16 rm

5

0.7

1.2

1.6

1.8

32

2875

4x25 rm

6.3

0.9

1.3

1.6

1.9

36

3800

4x35 sm

-

0.9

1.2

2

2.1

38

4200

4x50 sm

-

1

1.4

2

2.2

42

5300

4x70 sm

-

1.1

1.5

2

2.3

46

6775

4x95 sm

-

1.1

1.6

2.5

2.5

52

8800

4x120 sm

-

1.2

1.7

2.5

2.7

57

10500

4x150 sm

-

1.4

1.8

2.5

2.9

62

12450

4x185 sm

-

1.6

2

2.5

3

67

14950

4x240 sm

-

1.7

2.2

2.5

3.3

74

18550

4x300 sm

-

1.8

2.3

3.2

3.5

81

22900
