     NSGAFOEU/NSHXAFOE Medium-Voltage Single Core Cables

Applications

These cables are designed for fixed installation in track-bound vehicles and buses,in pipes and closed installation ducts, as well as for theconnection of mobile parts. 3 kV-rated cables can beused in low-voltage switch boards to ensure inherentlyshort-circuit and earth-fault proof connections.

Standards

DIN VDE 0250 Part 602 (for NSGAFOEU/NSGAFCMOEU)

DIN VDE 0250 Part 606 (for halogen free versionNSHXAFOE/NSHXAFCMOE)

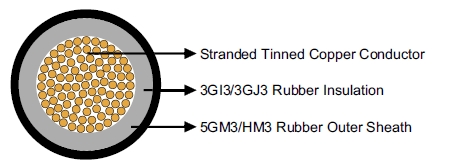

Construction

NSGAFOEU/NSHXAFOE Medium-Voltage Single Core Cables

Conductors: Stranded tinned copper conductor, class 5 according to DIN VDE 0295/IEC 60228.

Inner Conductor Layer (for 6kV): Semi-conducting layer.

Insulation: EPR compound type 3GI3/3GJ3.

Optional Screen (for NSGAFCMOEU/NSHXAFCMOE): Tinned copper wires.

Outer Sheath: Chlorinated rubber type 5GM3, oil resistant and flame retardant (for NSGAFOEU/ NSGAFCMOEU). Halogen-free polymer compound HM3, oil-resistant, flame retardant, low smoke (for NSHXAFOE//NSHXAFOE).

Dimensions and Weight

NSGAFOEU/NSHXAFOE 1.8/3kV

Number of Cores×Nominal Cross Section Minimium Overall Diameter Maximum Overall Diameter Nominal Weight
No. ×mm² mm mm kg/km
1×1.5 5.7 7.0 50
1×2.5 6.0 7.5 60
1×4 6.8 9.0 80
1×6 7.3 9.5 100
1×10 8.7 11.0 160
1×16 10.0 13.0 230
1×25 12.4 15.0 340
1×35 13.4 16.5 430
1×50 14.9 18.0 580
1×70 16.6 20.5 780
1×95 19.3 24.0 1030
1×120 20.8 26.0 1270
1×150 23.0 28.0 1570
1×185 25.2 31.0 1900
1×240 28.1 34.5 2500
1×300 30.8 38.0 3000
1×400 40.0 34.6 4000

NSGAFOEU/NSHXAFOE 3.6/6kV

Number of Cores×Nominal Cross Section Minimium Overall Diameter Maximum Overall Diameter Nominal Weight
No. ×mm² mm mm kg/km
1×1.5 8.3 9.5 135
1×2.5 8.6 10.5 150
1×4 9.4 12.0 170
1×6 9.9 13.0 200
1×10 10.9 14.5 250
1×16 12.6 15.5 350
1×25 14.5 17.5 480
1×35 15.6 19.0 600
1×50 17.1 21.0 760
1×70 18.8 23.0 960
1×95 21.3 26.5 1240
1×120 23.2 28.5 1530
1×150 25.0 30.5 1790
1×185 26.8 33.0 2130

NSGAFCMOEU/NSHXAFCMOE 3.6/6kV

Number of Cores×Nominal Cross Section Nominal Overall Diameter Nominal Weight
No.×mm² mm kg/km
1×185 38.5 3060
